Force Generation with Optimized Descending Drive Parameters

This example demonstrates force computation using the optimized network parameters from the previous optimization study. It shows how to load saved parameters, run a simulation with those settings, and generate realistic force output from motor neuron spike trains.

Note

Force generation workflow:

1. Load optimized DD parameters (neurons, connectivity, drive frequency)

2. Build network with optimized configuration

3. Simulate motor neuron spiking activity

4. Convert spike trains to muscle force using twitch dynamics

5. Validate force characteristics (mean, variability, smoothness)

Important

Prerequisites: This example requires results from the optimization study:

• Run 00_optimize_dd_for_target_firing_rate.py first

• Generates dd_optimized_params.json in results/dd_optimization/

• Contains best network parameters for target firing rate

Force Model: Uses physiologically accurate motor unit twitch dynamics with:

• Twitch rise times: Scaled by motor unit size (fast units: 20-40ms, slow units: 60-90ms)

• Contraction-relaxation: Asymmetric temporal profile matching experimental data

• Summation: Nonlinear fusion of individual twitches during repeated activation

• Recruitment order: Hennemans size principle (small units first)

Import Libraries

For force generation, we need:

• ForceModel: Converts spike trains to force using twitch dynamics

• Network: Neural populations and connectivity (from optimization)

• Neo: Spike train data structures

import json
import os

os.environ["MPLBACKEND"] = "Agg"
if "DISPLAY" in os.environ:
    del os.environ["DISPLAY"]

import warnings
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import quantities as pq
from neo import Block, Segment, SpikeTrain
from neuron import h

from myogen import RANDOM_GENERATOR
from myogen.simulator import RecruitmentThresholds
from myogen.simulator.core.force.force_model import ForceModel
from myogen.simulator.neuron import Network
from myogen.simulator.neuron.populations import AlphaMN__Pool, DescendingDrive__Pool
from myogen.utils.helper import calculate_firing_rate_statistics
from myogen.utils.nmodl import load_nmodl_mechanisms

warnings.filterwarnings("ignore")
plt.style.use("fivethirtyeight")

Define Simulation Parameters

Set parameters for force validation simulation.

# Simulation settings
SIMULATION_TIME_MS = 10000.0  # 10 seconds for steady-state force
TIMESTEP_MS = 0.1  # Integration timestep (ms)
N_MOTOR_UNITS = 100  # Motor neuron pool size

# File paths - use project root to share across examples
# Handle both manual execution and Sphinx Gallery (where __file__ is not defined)
try:
    _script_dir = Path(__file__).parent
except NameError:
    _script_dir = Path.cwd()
RESULTS_DIR = _script_dir.parent.parent / "results" / "dd_optimization"
OUTPUT_DIR = _script_dir.parent.parent / "results" / "force_validation"
OUTPUT_DIR.mkdir(exist_ok=True, parents=True)

# Fixed parameters (matching optimization)
SYNAPTIC_WEIGHT = 0.05  # DD→MN synaptic weight (µS)

Load Optimized Parameters

Load the best network parameters from the optimization study.

params_file = RESULTS_DIR / "dd_optimized_params.json"
if not params_file.exists():
    raise FileNotFoundError(
        f"Optimized parameters not found: {params_file}\n"
        f"Run 00_optimize_dd_for_target_firing_rate.py first!"
    )

with open(params_file, "r") as f:
    results = json.load(f)

# Extract optimized parameters
dd_params = results["best_trial"]
dd_neurons = dd_params["dd_neurons"]
conn_probability = dd_params["conn_probability"]
dd_drive__Hz = dd_params["dd_drive__Hz"]
gamma_shape = dd_params["gamma_shape"]

# Load Gfluctdv settings if present
gfluctdv_enabled = results.get("input_parameters", {}).get("gfluctdv_enabled", False)
gfluctdv_noise_amplitude = dd_params.get("gfluctdv_noise_amplitude", None)

print("\nForce Validation with Optimized Parameters")
print("=" * 50)
print(f"DD neurons: {dd_neurons}")
print(f"Connection probability: {conn_probability:.3f}")
print(f"Drive frequency: {dd_drive__Hz:.1f} Hz")
print(f"Gamma shape: {gamma_shape:.2f}")
if gfluctdv_enabled:
    print(f"Gfluctdv: ENABLED (amplitude={gfluctdv_noise_amplitude:.2e} S/cm²)")
else:
    print("Gfluctdv: DISABLED")
print("=" * 50 + "\n")

Force Validation with Optimized Parameters
==================================================
DD neurons: 379
Connection probability: 0.841
Drive frequency: 19.4 Hz
Gamma shape: 3.00
Gfluctdv: DISABLED
==================================================

Load NEURON Mechanisms and Setup Network

Initialize NEURON and create the network with optimized parameters.

load_nmodl_mechanisms()
h.secondorder = 2  # Crank-Nicolson integration

# Create recruitment thresholds
recruitment_thresholds, _ = RecruitmentThresholds(
    N=N_MOTOR_UNITS,
    recruitment_range__ratio=100,
    deluca__slope=5,
    konstantin__max_threshold__ratio=1.0,
    mode="combined",
)

# Create motor neuron pool
motor_neuron_pool = AlphaMN__Pool(
    recruitment_thresholds__array=recruitment_thresholds,
    config_file="alpha_mn_default.yaml",
)

# Apply Gfluctdv if it was enabled during optimization
if gfluctdv_enabled and gfluctdv_noise_amplitude is not None:
    print("Applying Gfluctdv to motor neurons (matching optimization settings)...")
    for cell in motor_neuron_pool:
        cell.insert_Gfluctdv()
        for d in cell.dend:
            d.std_e_Gfluctdv = gfluctdv_noise_amplitude
            d.std_i_Gfluctdv = gfluctdv_noise_amplitude

# Create descending drive pool with optimized size
descending_drive_pool = DescendingDrive__Pool(
    n=dd_neurons,
    timestep__ms=TIMESTEP_MS * pq.ms,
    process_type="gamma",
    shape=float(gamma_shape),
)

Build Network with Optimized Connectivity

Create synaptic connections using the optimized probability and weights.

network = Network({"DD": descending_drive_pool, "aMN": motor_neuron_pool})

# Connect with optimized probability
network.connect(
    source="DD",
    target="aMN",
    probability=conn_probability,
    weight__uS=SYNAPTIC_WEIGHT * pq.uS,
)

# External input to DD population
network.connect_from_external(source="cortical_input", target="DD", weight__uS=1.0 * pq.uS)
dd_netcons = network.get_netcons("cortical_input", "DD")

Setup Spike Recording

Configure spike time recording for all motor neurons.

mn_spike_recorders = []
for cell in motor_neuron_pool:
    spike_recorder = h.Vector()
    nc = h.NetCon(cell.soma(0.5)._ref_v, None, sec=cell.soma)
    nc.threshold = 50  # Spike detection threshold (mV)
    nc.record(spike_recorder)
    mn_spike_recorders.append(spike_recorder)

Generate Drive Signal

Create constant drive at the optimized frequency with small noise.

time_points = int(SIMULATION_TIME_MS / TIMESTEP_MS)
drive_signal = np.ones(time_points) * dd_drive__Hz + np.clip(
    RANDOM_GENERATOR.normal(0, 1.0, size=time_points), 0, None
)

Run Simulation

Execute the NEURON simulation to generate motor neuron spike trains.

h.load_file("stdrun.hoc")
h.dt = TIMESTEP_MS
h.tstop = SIMULATION_TIME_MS

# Initialize voltages
for section, voltage in zip(*motor_neuron_pool.get_initialization_data()):
    section.v = voltage
for section, voltage in zip(*descending_drive_pool.get_initialization_data()):
    section.v = voltage

h.finitialize()

print("Running simulation...")
step_counter = 0
while h.t < h.tstop:
    current_drive = drive_signal[min(step_counter, len(drive_signal) - 1)]
    for dd_cell in descending_drive_pool:
        if dd_cell.integrate(current_drive):
            if h.t < h.tstop:
                dd_netcons[dd_cell.pool__ID].event(h.t + 1)
    h.fadvance()
    step_counter += 1

print("Simulation complete!\n")

Running simulation...
Simulation complete!

Process Spike Trains

Convert NEURON recordings to Neo SpikeTrain objects.

dt_s = h.dt / 1000.0
mn_segment = Segment(name="Motor Neurons")
mn_segment.spiketrains = [
    SpikeTrain(
        recorder.as_numpy() / 1000 * pq.s,
        t_stop=SIMULATION_TIME_MS / 1000 * pq.s,
        sampling_rate=(1 / dt_s * (pq.Hz)),
        sampling_period=dt_s * pq.s,
        name=f"MN_{i}",
    )
    for i, recorder in enumerate(mn_spike_recorders)
]

spike_train__Block = Block(name="Motor Unit Pool")
spike_train__Block.segments = [mn_segment]

Calculate Firing Rate Statistics

Analyze spike train characteristics.

stats = calculate_firing_rate_statistics(mn_segment.spiketrains)
fr_mean = float(stats["FR_mean"])
fr_std = float(stats["FR_std"])
n_active = int(stats["n_active"])

print("Firing Rate Statistics:")
print(f"  Active units: {n_active}/{N_MOTOR_UNITS}")
print(f"  Mean firing rate: {fr_mean:.2f} Hz")
print(f"  Std deviation: {fr_std:.2f} Hz")
print(f"  Coefficient of variation: {fr_std / fr_mean:.3f}\n")

Firing Rate Statistics:
  Active units: 59/100
  Mean firing rate: 10.84 Hz
  Std deviation: 2.36 Hz
  Coefficient of variation: 0.218

Generate Force Output

Convert spike trains to muscle force using motor unit twitch dynamics.

Note

The ForceModel implements:

• Size-dependent twitch rise times (Henneman’s principle)

• Nonlinear force summation during repetitive activation

• Realistic contraction-relaxation dynamics

• Physiologically validated parameter ranges

force_model = ForceModel(
    recruitment_thresholds=recruitment_thresholds,
    recording_frequency__Hz=2048 * pq.Hz,  # High sampling for smooth force
    longest_duration_rise_time__ms=90.0 * pq.ms,  # Slow unit rise time
    contraction_time_range_factor=3,  # Rise:fall time ratio
)

force_output = force_model.generate_force(spike_train__Block=spike_train__Block)
force_signal = force_output.magnitude[:, 0]
force_time = force_output.times.rescale(pq.s).magnitude

Pool 1 Twitch trains (Numba):   0%|          | 0/100 [00:00<?, ?MU/s]
Pool 1 Twitch trains (Numba):   1%|          | 1/100 [00:00<00:23,  4.20MU/s]
Pool 1 Twitch trains (Numba): 100%|██████████| 100/100 [00:00<00:00, 399.67MU/s]

Analyze Force Characteristics

Compute steady-state force statistics (using last 50% to avoid transients).

steady_idx = len(force_signal) // 2
force_steady = force_signal[steady_idx:]

force_mean = np.mean(force_steady)
force_std = np.std(force_steady)
force_cov = force_std / force_mean  # Coefficient of variation

print("Force Statistics (steady-state):")
print(f"  Mean force: {force_mean:.4f} a.u.")
print(f"  Std deviation: {force_std:.4f} a.u.")
print(f"  Coefficient of variation: {force_cov:.3f}")
print(f"  Ripple amplitude: {(force_std / force_mean) * 100:.2f}%\n")

Force Statistics (steady-state):
  Mean force: 11.9028 a.u.
  Std deviation: 1.0056 a.u.
  Coefficient of variation: 0.084
  Ripple amplitude: 8.45%

Save Results

Store force validation results for comparison across parameter sets.

force_results = {
    "dd_parameters": dd_params,
    "gfluctdv_enabled": gfluctdv_enabled,
    "firing_rate": {
        "mean__Hz": fr_mean,
        "std__Hz": fr_std,
        "n_active": n_active,
        "cov": fr_std / fr_mean,
    },
    "force": {
        "mean__au": force_mean,
        "std__au": force_std,
        "cov": force_cov,
        "ripple_percent": (force_std / force_mean) * 100,
    },
}

results_file = OUTPUT_DIR / "force_results.json"
with open(results_file, "w") as f:
    json.dump(force_results, f, indent=2)

print(f"Saved results: {results_file}")

Saved results: /home/runner/work/MyoGen/MyoGen/results/force_validation/force_results.json

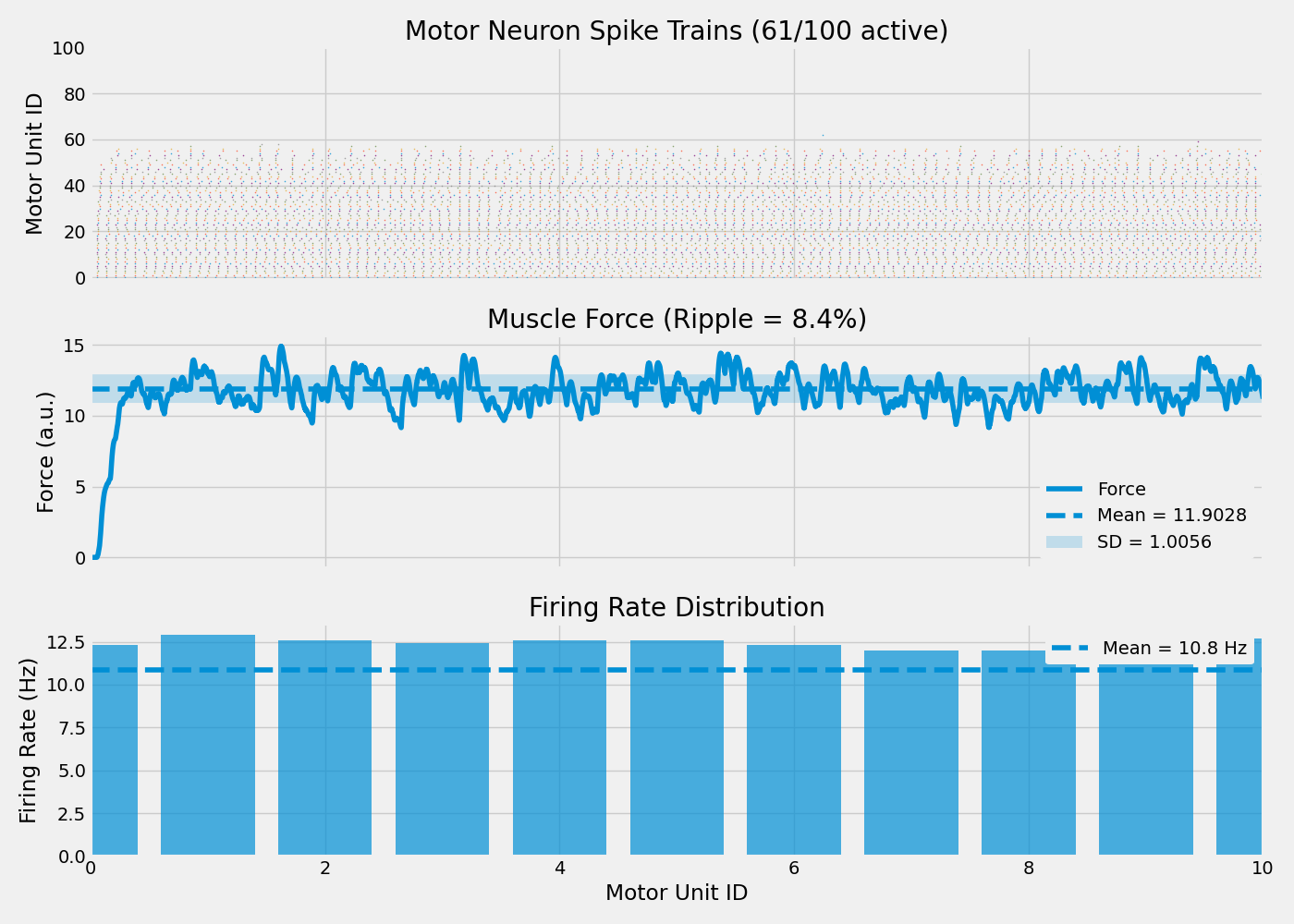

Visualize Results

Create clean visualizations of spike trains and force output.

fig, axes = plt.subplots(3, 1, figsize=(14, 10), sharex=True)

# 1. Motor neuron raster plot
active_count = 0
for i, spiketrain in enumerate(mn_segment.spiketrains):
    if len(spiketrain) > 0:
        spike_times = spiketrain.rescale(pq.s).magnitude
        axes[0].scatter(spike_times, [i] * len(spike_times), s=0.5, alpha=0.6)
        active_count += 1

axes[0].set_ylabel("Motor Unit ID")
axes[0].set_title(f"Motor Neuron Spike Trains ({active_count}/{N_MOTOR_UNITS} active)")
axes[0].set_ylim(-1, N_MOTOR_UNITS)

# 2. Force trace
axes[1].plot(force_time, force_signal, label="Force")
axes[1].axhline(force_mean, linestyle="--", label=f"Mean = {force_mean:.4f}")
axes[1].fill_between(
    force_time,
    force_mean - force_std,
    force_mean + force_std,
    alpha=0.2,
    label=f"SD = {force_std:.4f}",
)
axes[1].set_ylabel("Force (a.u.)")
axes[1].set_title(f"Muscle Force (Ripple = {force_cov * 100:.1f}%)")
axes[1].legend(framealpha=1.0, edgecolor="none")

# 3. Firing rate distribution
firing_rates = []
mu_ids = []
for i, st in enumerate(mn_segment.spiketrains):
    if len(st) > 2:
        rate = len(st) / (SIMULATION_TIME_MS / 1000.0)
        firing_rates.append(rate)
        mu_ids.append(i)

if firing_rates:
    axes[2].bar(mu_ids, firing_rates, alpha=0.7)
    axes[2].axhline(fr_mean, linestyle="--", label=f"Mean = {fr_mean:.1f} Hz")
    axes[2].set_xlabel("Motor Unit ID")
    axes[2].set_ylabel("Firing Rate (Hz)")
    axes[2].set_title("Firing Rate Distribution")
    axes[2].legend(framealpha=1.0, edgecolor="none")

# Format all axes
for ax in axes:
    ax.set_xlim(0, SIMULATION_TIME_MS / 1000)

plt.tight_layout()
plt.savefig(OUTPUT_DIR / "force_validation.png", dpi=150, bbox_inches="tight")
plt.show()
