Muscle Model#

The spike trains alone are not enough to create EMG signals.

To create EMG signals, we need to create a muscle model that will distribute the motor units and fibers within the muscle volume.

Import Libraries#

from pathlib import Path

import joblib
import matplotlib.pyplot as plt
import numpy as np
import quantities as pq

from myogen import simulator

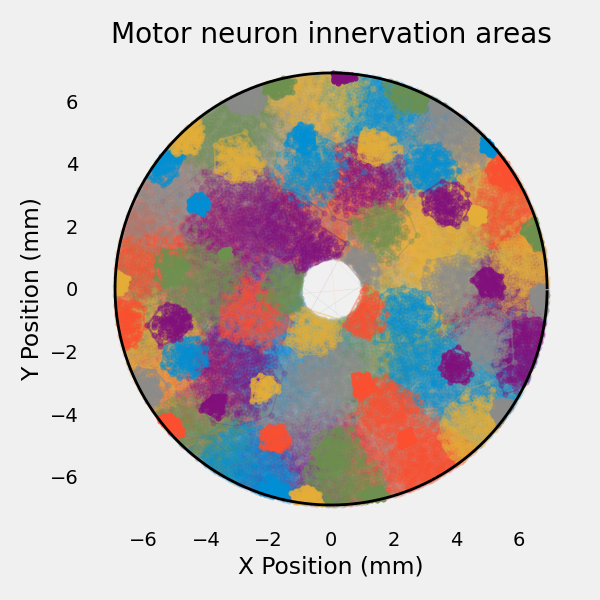

from myogen.utils.plotting.muscle import plot_innervation_areas_2d, plot_mf_centers

plt.style.use("fivethirtyeight")

Define Parameters#

The muscle model is created using the Muscle object.

The Muscle object takes the following parameters:

recruitment_thresholds: Recruitment thresholds of the motor units
radius: Radius of the muscle in mm
fiber_density: Fiber density per mm²
max_innervation_area_to_total_muscle_area__ratio: Maximum innervation area to total muscle area ratio
grid_resolution: Spatial resolution for muscle discretization

Since the recruitment thresholds are already generated, we can load them from the previous example using joblib.

# Load recruitment thresholds
save_path = Path("./results")

recruitment_thresholds = joblib.load(save_path / "thresholds.pkl")

# Define muscle parameters
muscle_radius = 4.9 * pq.mm  # Muscle radius in mm
mean_fiber_length = 32 * pq.mm  # Mean fiber length in mm
fiber_length_variation = 3 * pq.mm  # Fiber length variation in mm
fiber_density = 400 * pq.mm**-2  # Fiber density in fibers per mm²

# Define simulation parameters
max_innervation_ratio = 1 / 4  # Maximum motor unit territory size
grid_resolution = 256  # Spatial resolution for muscle discretization

Create Muscle Model#

Note

Depending on the parameters, the simulation can take a few minutes to run.

To avoid running the simulation every time, we can save the muscle model using joblib.

# Create muscle model
muscle = simulator.Muscle(
    recruitment_thresholds=recruitment_thresholds,
    radius_bone__mm=1.0 * pq.mm,  # Non-zero bone radius required for proper MUAP amplitudes
    fiber_density__fibers_per_mm2=fiber_density,
    fat_thickness__mm=10 * pq.mm,
    autorun=True,
)

# Save muscle model for future use
joblib.dump(muscle, save_path / "muscle_model.pkl")

# Display muscle statistics
total_fibers = sum(muscle.resulting_number_of_innervated_fibers)

print("Muscle model statistics:")
print(f"\tTotal muscle fibers: {total_fibers}")
print(f"\tMean fibers per MU: {total_fibers / len(recruitment_thresholds):.1f}")
print(f"\tMuscle cross-sectional area: {np.pi * muscle_radius**2:.1f}")
