Extracting Data from Neo Blocks

This example demonstrates how to extract and work with data from the different Neo Block types used in MyoGen:

• SPIKE_TRAIN__Block
• SURFACE_MUAP__Block
• SURFACE_EMG__Block
• INTRAMUSCULAR_MUAP__Block
• INTRAMUSCULAR_EMG__Block

Each section shows practical code for accessing and analyzing the data.

Import Libraries

from pathlib import Path

import joblib
import matplotlib.pyplot as plt
import numpy as np
import quantities as pq
import seaborn as sns

from myogen.utils.neo import signal_to_grid
from myogen.utils.types import (
    INTRAMUSCULAR_EMG__Block,
    INTRAMUSCULAR_MUAP__Block,
    SPIKE_TRAIN__Block,
    SURFACE_EMG__Block,
    SURFACE_MUAP__Block,
)


def _mean_firing_rate(spiketrain):
    """Mean firing rate of a neo.SpikeTrain (replaces elephant.statistics.mean_firing_rate)."""
    return (len(spiketrain) / (spiketrain.t_stop - spiketrain.t_start)).rescale(pq.Hz)


plt.style.use("fivethirtyeight")
sns.set_palette("husl")

Setup Paths

save_path = Path("./results")

# Check which files exist
files_to_check = {
    "spike_trains": save_path / "trapezoid_dd_spike_trains.pkl",
    "surface_muaps": save_path / "surface_muaps.pkl",
    "surface_emg": save_path / "surface_emg_signals.pkl",
    "intramuscular_muaps": save_path / "intramuscular_muaps.pkl",
    "intramuscular_emg": save_path / "intramuscular_emg.pkl",
}

available_files = {name: path for name, path in files_to_check.items() if path.exists()}

print("Available data files:")
for name, path in available_files.items():
    print(f"  ✓ {name}: {path.name}")

print("\nMissing data files (run respective examples first):")
for name, path in files_to_check.items():
    if name not in available_files:
        print(f"  ✗ {name}: {path.name}")

Out:

Available data files:
  ✓ spike_trains: trapezoid_dd_spike_trains.pkl
  ✓ surface_emg: surface_emg_signals.pkl

Missing data files (run respective examples first):
  ✗ surface_muaps: surface_muaps.pkl
  ✗ intramuscular_muaps: intramuscular_muaps.pkl
  ✗ intramuscular_emg: intramuscular_emg.pkl

Example 1: Extracting Spike Train Data

if "spike_trains" in available_files:
    print("\n" + "=" * 70)
    print("EXAMPLE 1: SPIKE_TRAIN__Block")
    print("=" * 70)

    # Load spike train block
    spike_train__Block: SPIKE_TRAIN__Block = joblib.load(available_files["spike_trains"])

    print(f"\nBlock name: {spike_train__Block.name}")
    print(f"Number of segments (motor pools): {len(spike_train__Block.segments)}")

    # Access first motor pool
    motor_pool = spike_train__Block.segments[0]
    print(f"\nMotor pool: {motor_pool.name}")
    print(f"Number of neurons: {len(motor_pool.spiketrains)}")

    # Analyze individual neuron
    neuron_idx = 0
    spiketrain = motor_pool.spiketrains[neuron_idx]
    print(f"\nNeuron {neuron_idx}:")
    print(f"\tName: {spiketrain.name}")
    print(f"  Number of spikes: {len(spiketrain)}")
    print(f"  Sampling rate: {spiketrain.sampling_rate}")
    print(f"  Duration: {spiketrain.t_stop}")

    if len(spiketrain) > 0:
        spike_times__s = spiketrain.magnitude
        print(f"  First spike: {spike_times__s[0]:.4f} s")
        print(f"  Last spike: {spike_times__s[-1]:.4f} s")

        # Calculate firing rate
        firing_rate = _mean_firing_rate(spiketrain)
        print(f"  Mean firing rate: {firing_rate:.2f}")

    # Calculate statistics across all neurons
    firing_rates = []
    active_neurons = 0

    for st in motor_pool.spiketrains:
        if len(st) > 0:
            rate = _mean_firing_rate(st)
            firing_rates.append(rate.magnitude)
            active_neurons += 1

    if firing_rates:
        print("\nMotor pool statistics:")
        print(f"  Active neurons: {active_neurons}/{len(motor_pool.spiketrains)}")
        print(f"  Mean firing rate: {np.mean(firing_rates):.2f} Hz")
        print(f"  Std firing rate: {np.std(firing_rates):.2f} Hz")
        print(f"  Range: {np.min(firing_rates):.2f} - {np.max(firing_rates):.2f} Hz")

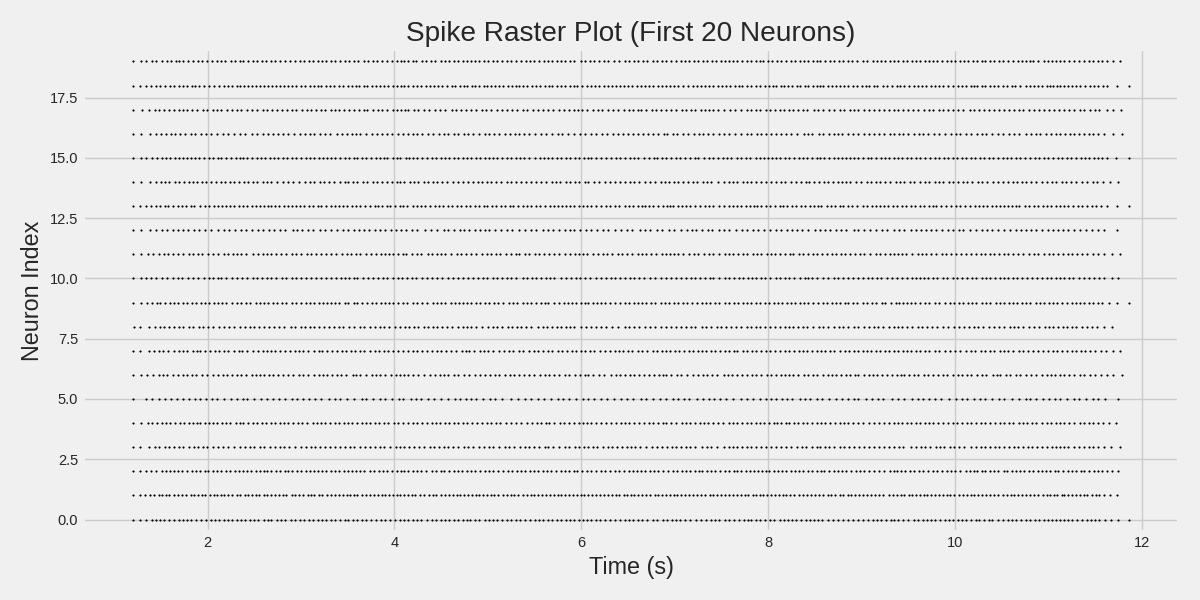

    # Plot raster plot
    fig, ax = plt.subplots(figsize=(12, 6))

    for neuron_idx, st in enumerate(motor_pool.spiketrains[:20]):  # First 20 neurons
        if len(st) > 0:
            spike_times = st.magnitude
            ax.scatter(spike_times, [neuron_idx] * len(spike_times), s=1, c="black")

    ax.set_xlabel("Time (s)")
    ax.set_ylabel("Neuron Index")
    ax.set_title("Spike Raster Plot (First 20 Neurons)")
    ax.set_ylim(-0.5, 19.5)
    plt.tight_layout()
    plt.savefig(save_path / "spike_raster.png", dpi=150)
    print(f"\nSaved raster plot to: {save_path / 'spike_raster.png'}")

Out:

======================================================================
EXAMPLE 1: SPIKE_TRAIN__Block
======================================================================

Block name: Trapezoidal DD Spike Trains
Number of segments (motor pools): 1

Motor pool: Motor Neurons
Number of neurons: 100

Neuron 0:
        Name: MN_0
  Number of spikes: 217
  Sampling rate: 10000.0 Hz
  Duration: 15.0 s
  First spike: 1.2035 s
  Last spike: 11.8582 s
  Mean firing rate: 14.47 Hz

Motor pool statistics:
  Active neurons: 81/100
  Mean firing rate: 11.62 Hz
  Std firing rate: 3.68 Hz
  Range: 0.40 - 16.60 Hz

Saved raster plot to: results/spike_raster.png

Example 2: Extracting Surface MUAP Data

if "surface_muaps" in available_files:
    print("\n" + "=" * 70)
    print("EXAMPLE 2: SURFACE_MUAP__Block")
    print("=" * 70)

    # Load MUAP block
    muaps__Block: SURFACE_MUAP__Block = joblib.load(available_files["surface_muaps"])

    print(f"\nNumber of electrode arrays: {len(muaps__Block.groups)}")

    # Access first electrode array
    electrode_array = muaps__Block.groups[0]
    print(f"\nElectrode array: {electrode_array.name}")
    print(f"Number of MUAPs: {len(electrode_array.segments)}")

    # Access a specific MUAP
    muap_idx = min(5, len(electrode_array.segments) - 1)
    muap_segment = electrode_array.segments[muap_idx]
    muap_signal = muap_segment.analogsignals[0]

    # Get grid shape from annotations (signals stored as 2D for NWB compatibility)
    grid_shape = muap_signal.annotations["grid_shape"]
    print(f"\nMUAP {muap_idx} ({muap_segment.name}):")
    print(f"  Shape: {muap_signal.shape} (stored as 2D for NWB compatibility)")
    print(f"  Time samples: {muap_signal.shape[0]}")
    print(f"  Electrode grid: {grid_shape[0]} rows × {grid_shape[1]} columns")
    print(f"  Sampling rate: {muap_signal.sampling_rate}")
    print(f"  Duration: {muap_signal.t_stop}")
    print(f"  Units: {muap_signal.units}")

    # Convert to 3D grid format for analysis
    muap_grid = signal_to_grid(muap_signal)  # shape: (time, rows, cols)

    # Extract MUAP from center electrode
    center_row = grid_shape[0] // 2
    center_col = grid_shape[1] // 2
    center_muap = muap_grid[:, center_row, center_col]

    print(f"\nMUAP at center electrode ({center_row}, {center_col}):")
    print(f"  Peak-to-peak: {np.ptp(center_muap):.3f} {muap_signal.units}")
    print(f"  Max amplitude: {np.max(np.abs(center_muap)):.3f} {muap_signal.units}")

    # Find peak time and create spatial map
    peak_time_idx = np.argmax(np.abs(muap_grid))
    peak_time_idx = np.unravel_index(peak_time_idx, muap_grid.shape)[0]
    spatial_map = muap_grid[peak_time_idx, :, :]

    # Plot MUAP waveform and spatial distribution
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))

    # Waveform at center electrode
    time__s = muap_signal.times.magnitude
    ax1.plot(time__s * 1000, center_muap.magnitude, linewidth=2)  # Convert to ms
    ax1.set_xlabel("Time (ms)")
    ax1.set_ylabel(f"Amplitude ({muap_signal.units})")
    ax1.set_title(f"MUAP {muap_idx} at Center Electrode")
    ax1.grid(True, alpha=0.3)

    # Spatial distribution at peak time
    im = ax2.imshow(spatial_map, cmap="seismic", aspect="auto")
    ax2.set_xlabel("Electrode Column")
    ax2.set_ylabel("Electrode Row")
    ax2.set_title(f"Spatial Distribution at t={time__s[peak_time_idx] * 1000:.1f}ms")
    plt.colorbar(im, ax=ax2, label=f"Amplitude ({muap_signal.units})")

    plt.tight_layout()
    plt.savefig(save_path / "surface_muap_analysis.png", dpi=150)
    print(f"\nSaved MUAP analysis to: {save_path / 'surface_muap_analysis.png'}")

Example 3: Extracting Surface EMG Data

if "surface_emg" in available_files:
    print("\n" + "=" * 70)
    print("EXAMPLE 3: SURFACE_EMG__Block")
    print("=" * 70)

    # Load surface EMG block
    surface_emg__Block: SURFACE_EMG__Block = joblib.load(available_files["surface_emg"])

    print(f"\nNumber of electrode arrays: {len(surface_emg__Block.groups)}")

    # Access first electrode array
    electrode_array = surface_emg__Block.groups[0]
    print(f"\nElectrode array: {electrode_array.name}")
    print(f"Number of motor pool segments: {len(electrode_array.segments)}")

    # Access first motor pool
    motor_pool = electrode_array.segments[0]
    emg_signal = motor_pool.analogsignals[0]

    # Get grid shape from annotations (signals stored as 2D for NWB compatibility)
    grid_shape = emg_signal.annotations["grid_shape"]
    print(f"\nMotor pool: {motor_pool.name}")
    print(f"  EMG shape: {emg_signal.shape} (stored as 2D for NWB compatibility)")
    print(f"  Time samples: {emg_signal.shape[0]}")
    print(f"  Electrode grid: {grid_shape[0]} rows × {grid_shape[1]} columns")
    print(f"  Sampling rate: {emg_signal.sampling_rate}")
    print(f"  Duration: {emg_signal.t_stop}")

    # Convert to 3D grid format for analysis
    emg_grid = signal_to_grid(emg_signal)  # shape: (time, rows, cols)

    # Extract EMG from specific electrode
    row, col = 2, 2
    electrode_emg = emg_grid[:, row, col]
    time__s = emg_signal.times.magnitude

    print(f"\nEMG at electrode ({row}, {col}):")
    print(
        f"  RMS amplitude: {np.sqrt(np.mean(electrode_emg**2)):.3f} {emg_signal.units}"
    )
    print(f"  Peak-to-peak: {np.ptp(electrode_emg):.3f} {emg_signal.units}")

    # Calculate RMS envelope with moving window
    window_size = int(0.1 * emg_signal.sampling_rate.magnitude)  # 100ms window
    emg_magnitude = np.squeeze(electrode_emg)  # Ensure 1D array
    rms_envelope = np.array(
        [
            np.sqrt(
                np.mean(emg_magnitude[max(0, i - window_size // 2) : i + window_size // 2] ** 2)
            )
            for i in range(len(emg_magnitude))
        ]
    )

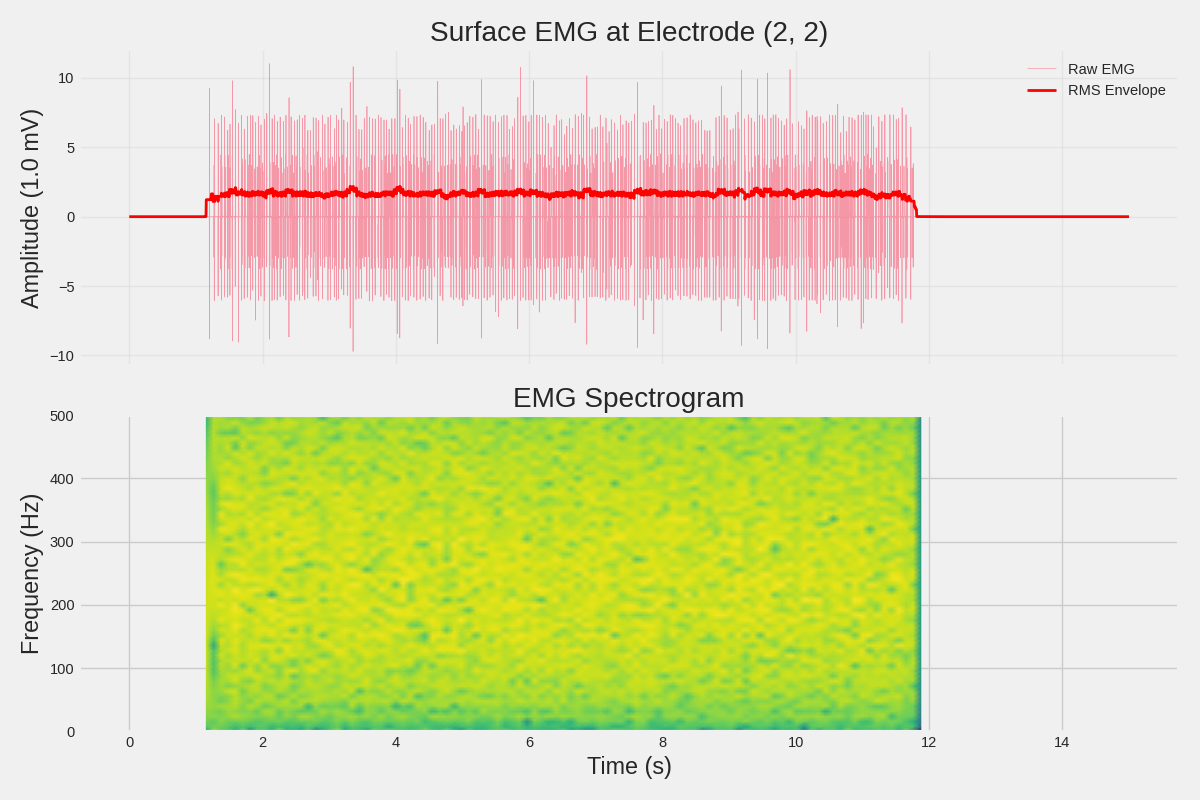

    # Plot EMG signal and RMS envelope
    fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 8), sharex=True)

    # Raw EMG
    ax1.plot(time__s, emg_magnitude, linewidth=0.5, alpha=0.7, label="Raw EMG")
    ax1.plot(time__s, rms_envelope, linewidth=2, color="red", label="RMS Envelope")
    ax1.set_ylabel(f"Amplitude ({emg_signal.units})")
    ax1.set_title(f"Surface EMG at Electrode ({row}, {col})")
    ax1.legend()
    ax1.grid(True, alpha=0.3)

    # Spectrogram
    from scipy import signal as scipy_signal

    f, t, Sxx = scipy_signal.spectrogram(
        emg_magnitude,
        fs=emg_signal.sampling_rate.magnitude,
        nperseg=min(256, len(emg_magnitude) // 4),
    )

    ax2.pcolormesh(t, f, 10 * np.log10(Sxx), shading="gouraud", cmap="viridis")
    ax2.set_ylabel("Frequency (Hz)")
    ax2.set_xlabel("Time (s)")
    ax2.set_title("EMG Spectrogram")
    ax2.set_ylim(0, 500)  # Focus on relevant frequency range

    plt.tight_layout()
    plt.savefig(save_path / "surface_emg_analysis.png", dpi=150)
    print(f"\nSaved EMG analysis to: {save_path / 'surface_emg_analysis.png'}")

Out:

======================================================================
EXAMPLE 3: SURFACE_EMG__Block
======================================================================

Number of electrode arrays: 1

Electrode array: ElectrodeArray_0
Number of motor pool segments: 1

Motor pool: Pool_0
  EMG shape: (30720, 25) (stored as 2D for NWB compatibility)
  Time samples: 30720
  Electrode grid: 5 rows × 5 columns
  Sampling rate: 2048.0 Hz
  Duration: 15.0 s

EMG at electrode (2, 2):
  RMS amplitude: 1.386 1.0 mV
  Peak-to-peak: 20.736 1.0 mV
/home/runner/work/MyoGen/MyoGen/examples/01_basic/12_extract_data_from_neo_blocks.py:299: RuntimeWarning: divide by zero encountered in log10
  ax2.pcolormesh(t, f, 10 * np.log10(Sxx), shading="gouraud", cmap="viridis")

Saved EMG analysis to: results/surface_emg_analysis.png

Example 4: Extracting Intramuscular MUAP Data

if "intramuscular_muaps" in available_files:
    print("\n" + "=" * 70)
    print("EXAMPLE 4: INTRAMUSCULAR_MUAP__Block")
    print("=" * 70)

    # Load intramuscular MUAP block
    im_muaps__Block: INTRAMUSCULAR_MUAP__Block = joblib.load(available_files["intramuscular_muaps"])

    print(f"\nNumber of MUAPs: {len(im_muaps__Block.segments)}")

    # Access a specific MUAP
    muap_idx = min(3, len(im_muaps__Block.segments) - 1)
    muap_segment = im_muaps__Block.segments[muap_idx]
    muap_signal = muap_segment.analogsignals[0]

    print(f"\nMUAP {muap_idx} ({muap_segment.name}):")
    print(f"  Shape: {muap_signal.shape}")
    print(f"  Time samples: {muap_signal.shape[0]}")
    print(f"  Number of electrodes: {muap_signal.shape[1]}")
    print(f"  Sampling rate: {muap_signal.sampling_rate}")
    print(f"  Duration: {muap_signal.t_stop}")

    # Extract MUAP from all electrodes
    n_electrodes = muap_signal.shape[1]

    # Plot MUAPs from all electrodes
    fig, axes_raw = plt.subplots(n_electrodes, 1, figsize=(10, 2 * n_electrodes), sharex=True)

    # Convert to list for consistent indexing (matplotlib returns Axes or array of Axes)
    axes_to_use = [axes_raw] if n_electrodes == 1 else list(axes_raw)  # type: ignore

    time__s = muap_signal.times.magnitude

    for electrode_idx in range(n_electrodes):
        electrode_muap = muap_signal[:, electrode_idx]
        peak_amplitude = np.max(np.abs(electrode_muap.magnitude))

        ax = axes_to_use[electrode_idx]
        ax.plot(time__s * 1000, electrode_muap.magnitude, linewidth=2)
        ax.set_ylabel(f"E{electrode_idx}\n({muap_signal.units})")
        ax.grid(True, alpha=0.3)
        ax.set_title(
            f"Electrode {electrode_idx} (Peak: {peak_amplitude:.2f} {muap_signal.units})",
            fontsize=10,
        )

    axes_to_use[-1].set_xlabel("Time (ms)")
    plt.suptitle(f"Intramuscular MUAP {muap_idx} - All Electrodes")
    plt.tight_layout()
    plt.savefig(save_path / "intramuscular_muap_analysis.png", dpi=150)
    print(f"\nSaved MUAP analysis to: {save_path / 'intramuscular_muap_analysis.png'}")

Example 5: Extracting Intramuscular EMG Data

if "intramuscular_emg" in available_files:
    print("\n" + "=" * 70)
    print("EXAMPLE 5: INTRAMUSCULAR_EMG__Block")
    print("=" * 70)

    # Load intramuscular EMG block
    im_emg__Block: INTRAMUSCULAR_EMG__Block = joblib.load(available_files["intramuscular_emg"])

    print(f"\nNumber of motor pool segments: {len(im_emg__Block.segments)}")

    # Access first motor pool
    motor_pool = im_emg__Block.segments[0]
    emg_signal = motor_pool.analogsignals[0]

    print(f"\nMotor pool: {motor_pool.name}")
    print(f"  EMG shape: {emg_signal.shape}")
    print(f"  Time samples: {emg_signal.shape[0]}")
    print(f"  Number of electrodes: {emg_signal.shape[1]}")
    print(f"  Sampling rate: {emg_signal.sampling_rate}")
    print(f"  Duration: {emg_signal.t_stop}")

    # Extract EMG from first electrode
    electrode_idx = 0
    electrode_emg = emg_signal[:, electrode_idx]

    print(f"\nEMG at electrode {electrode_idx}:")
    print(
        f"  RMS amplitude: {np.sqrt(np.mean(electrode_emg.magnitude**2)):.3f} {electrode_emg.units}"
    )
    print(f"  Peak-to-peak: {np.ptp(electrode_emg.magnitude):.3f} {electrode_emg.units}")

    # Calculate single differential EMG between adjacent contacts
    n_electrodes = emg_signal.shape[1]
    if n_electrodes > 1:
        differential_emg = np.zeros((emg_signal.shape[0], n_electrodes - 1))

        for i in range(n_electrodes - 1):
            differential_emg[:, i] = (emg_signal[:, i + 1] - emg_signal[:, i]).magnitude

        print(f"\nDifferential EMG calculated ({n_electrodes - 1} channels)")
        print(
            f"  Differential channel 0 RMS: {np.sqrt(np.mean(differential_emg[:, 0] ** 2)):.3f} {emg_signal.units}"
        )

        # Plot monopolar and differential EMG
        fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 8), sharex=True)

        time__s = emg_signal.times.magnitude

        # Monopolar EMG
        ax1.plot(time__s, electrode_emg.magnitude, linewidth=0.5)
        ax1.set_ylabel(f"Amplitude ({emg_signal.units})")
        ax1.set_title(f"Monopolar EMG - Electrode {electrode_idx}")
        ax1.grid(True, alpha=0.3)

        # Differential EMG
        ax2.plot(time__s, differential_emg[:, 0], linewidth=0.5, color="orange")
        ax2.set_ylabel(f"Amplitude ({emg_signal.units})")
        ax2.set_xlabel("Time (s)")
        ax2.set_title(f"Differential EMG - Electrodes {electrode_idx} to {electrode_idx + 1}")
        ax2.grid(True, alpha=0.3)

        plt.tight_layout()
        plt.savefig(save_path / "intramuscular_emg_analysis.png", dpi=150)
        print(f"\nSaved EMG analysis to: {save_path / 'intramuscular_emg_analysis.png'}")

Total running time of the script: ( 0 minutes 1.658 seconds)

Download Python source code: 12_extract_data_from_neo_blocks.py

Gallery generated by mkdocs-gallery
