Current Generation

MyoGen provides various functions to generate different types of input currents for motor neuron pool simulations. These currents can be used to drive motor unit recruitment and firing patterns.

Note

Input currents are the electrical stimuli applied to motor neuron pools to simulate muscle activation. Different current shapes can produce different recruitment and firing patterns.

MyoGen offers 5 different current waveform types:

• Sinusoidal: Smooth oscillatory currents for rhythmic activation

• Sawtooth: Asymmetric ramp currents with adjustable rise/fall characteristics

• Step: Constant amplitude pulses for simple on/off activation

• Ramp: Linear increase/decrease for gradual force changes

• Trapezoid: Complex waveforms with rise, plateau, and fall phases

Import Libraries

from pathlib import Path

import joblib
import numpy as np
from matplotlib import pyplot as plt

from myogen.utils.currents import (
    create_sinusoidal_current,
    create_sawtooth_current,
    create_step_current,
    create_ramp_current,
    create_trapezoid_current,
)
from myogen.utils.plotting.currents import plot_input_current__matrix

Define Parameters

Each current simulation is defined by common timing parameters:

• n_pools: Number of motor neuron pools

• simulation_duration__ms: Total simulation time in milliseconds

• timestep__ms: Time step for simulation in milliseconds

Additional parameters are specific to each current type and control amplitude, frequency, timing, and shape characteristics.

# Common simulation parameters
n_pools = 3
simulation_duration__ms = 2000.0  # 2 seconds
timestep__ms = 0.1  # 0.1 ms time step
t_points = int(simulation_duration__ms / timestep__ms)

# Create results directory
save_path = Path("./results")
save_path.mkdir(exist_ok=True)

Generate Sinusoidal Currents

Sinusoidal currents are useful for simulating rhythmic muscle activations, such as those occurring during locomotion or tremor.

print("Generating sinusoidal currents...")

# Parameters for sinusoidal currents
sin_amplitudes = [50.0, 75.0, 100.0]  # Different amplitudes for each pool
sin_frequencies = [1.0, 2.0, 3.0]  # Different frequencies (Hz)
sin_offsets = [120.0, 130.0, 140.0]  # DC offsets (µV)
sin_phases = [0.0, np.pi / 3, 2 * np.pi / 3]  # Phase shifts (rad)

sinusoidal_currents = create_sinusoidal_current(
    n_pools=n_pools,
    t_points=t_points,
    timestep__ms=timestep__ms,
    amplitudes__muV=sin_amplitudes,
    frequencies__Hz=sin_frequencies,
    offsets__muV=sin_offsets,
    phases__rad=sin_phases,
)

Generating sinusoidal currents...

Generate Sawtooth Currents

Sawtooth currents provide asymmetric ramps useful for simulating force-variable contractions with different rise and fall characteristics.

print("Generating sawtooth currents...")

# Parameters for sawtooth currents
saw_amplitudes = [80.0, 60.0, 100.0]
saw_frequencies = [0.5, 1.0, 1.5]  # Slow sawtooth waves
saw_offsets = [120.0, 125.0, 130.0]
saw_widths = [0.3, 0.5, 0.7]  # Width of rising edge (0-1)

sawtooth_currents = create_sawtooth_current(
    n_pools=n_pools,
    t_points=t_points,
    timestep_ms=timestep__ms,
    amplitudes__muV=saw_amplitudes,
    frequencies__Hz=saw_frequencies,
    offsets__muV=saw_offsets,
    widths=saw_widths,
)

Generating sawtooth currents...

Generate Step Currents

Step currents are useful for simulating sudden muscle activations, such as those occurring during ballistic movements.

print("Generating step currents...")

# Parameters for step currents
step_heights = [100.0, 75.0, 125.0]  # Step amplitudes
step_durations = [500.0, 800.0, 300.0]  # Step durations (ms)
step_offsets = [120.0, 115.0, 125.0]  # Baseline currents

step_currents = create_step_current(
    n_pools=n_pools,
    t_points=t_points,
    timestep_ms=timestep__ms,
    step_heights__muV=step_heights,
    step_durations__ms=step_durations,
    offsets__muV=step_offsets,
)

Generating step currents...

Generate Ramp Currents

Ramp currents simulate gradual force changes, useful for modeling slow force development or fatigue scenarios.

print("Generating ramp currents...")

# Parameters for ramp currents
ramp_start = [0.0, 25.0, 50.0]  # Starting current levels
ramp_end = [150.0, 100.0, 200.0]  # Ending current levels
ramp_offsets = [120.0, 130.0, 110.0]  # DC offsets

ramp_currents = create_ramp_current(
    n_pools=n_pools,
    t_points=t_points,
    start_currents__muV=ramp_start,
    end_currents__muV=ramp_end,
    offsets__muV=ramp_offsets,
)

Generating ramp currents...

Generate Trapezoid Currents

Trapezoid currents provide complex activation patterns with distinct phases: rise, plateau, and fall. These are useful for simulating controlled muscle contractions.

print("Generating trapezoid currents...")

# Parameters for trapezoid currents
trap_amplitudes = [100.0, 80.0, 120.0]  # Peak amplitudes
trap_rise_times = [200.0, 150.0, 300.0]  # Rise durations (ms)
trap_plateau_times = [800.0, 1000.0, 600.0]  # Plateau durations (ms)
trap_fall_times = [300.0, 200.0, 400.0]  # Fall durations (ms)
trap_offsets = [120.0, 125.0, 115.0]  # Baseline currents
trap_delays = [100.0, 200.0, 50.0]  # Initial delays (ms)

trapezoid_currents = create_trapezoid_current(
    n_pools=n_pools,
    t_points=t_points,
    timestep_ms=timestep__ms,
    amplitudes__muV=trap_amplitudes,
    rise_times__ms=trap_rise_times,
    plateau_times__ms=trap_plateau_times,
    fall_times__ms=trap_fall_times,
    offsets__muV=trap_offsets,
    delays__ms=trap_delays,
)

Generating trapezoid currents...

Save Current Matrices

Note

All MyoGen current matrices can be saved to files using joblib. This is useful to avoid re-generating currents if you need to use the same parameters in multiple simulations.

print("Saving current matrices...")

joblib.dump(sinusoidal_currents, save_path / "sinusoidal_currents.pkl")
joblib.dump(sawtooth_currents, save_path / "sawtooth_currents.pkl")
joblib.dump(step_currents, save_path / "step_currents.pkl")
joblib.dump(ramp_currents, save_path / "ramp_currents.pkl")
joblib.dump(trapezoid_currents, save_path / "trapezoid_currents.pkl")

Saving current matrices...

['results/trapezoid_currents.pkl']

Plot Current Waveforms

The current waveforms can be visualized to understand their characteristics and verify they match the intended stimulation patterns.

Note

Plotting helper functions are available in the myogen.utils.plotting module.

from myogen.utils.plotting.currents import plot_input_currents

# Suppress font warnings to keep output clean
import warnings
import logging

warnings.filterwarnings("ignore", message=".*Font family.*not found.*")
warnings.filterwarnings("ignore", message=".*findfont.*")
logging.getLogger("matplotlib.font_manager").setLevel(logging.ERROR)

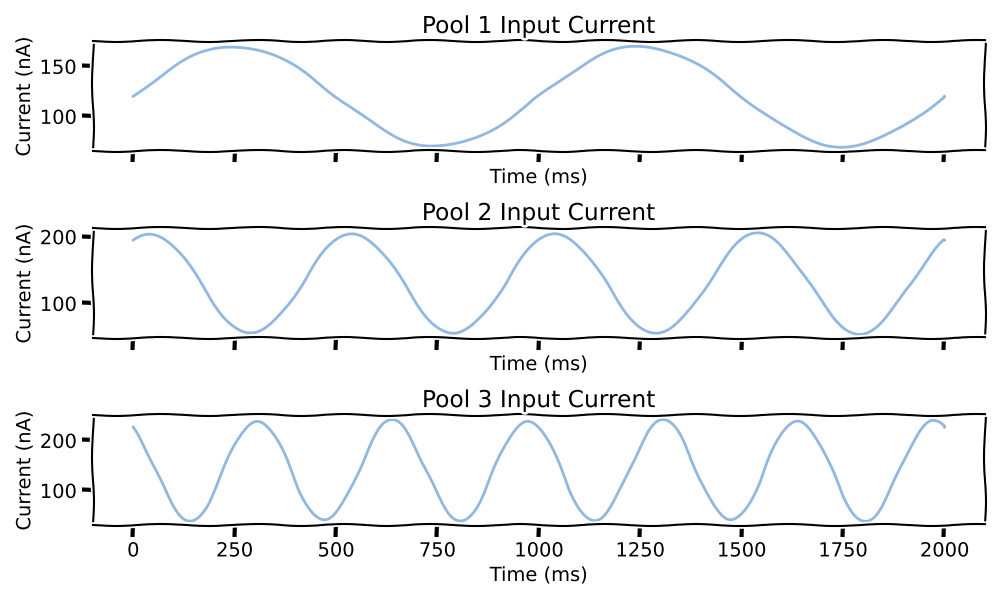

Sinusoidal Currents Visualization

Sinusoidal currents show smooth oscillations with different frequencies and phase relationships between pools.

print("Plotting sinusoidal currents...")
with plt.xkcd():
    _, axs = plt.subplots(figsize=(10, 6), nrows=n_pools, sharex=True)
    plot_input_current__matrix(sinusoidal_currents, timestep__ms, axs, color="#90b8e0")
plt.tight_layout()
plt.show()

Plotting sinusoidal currents...

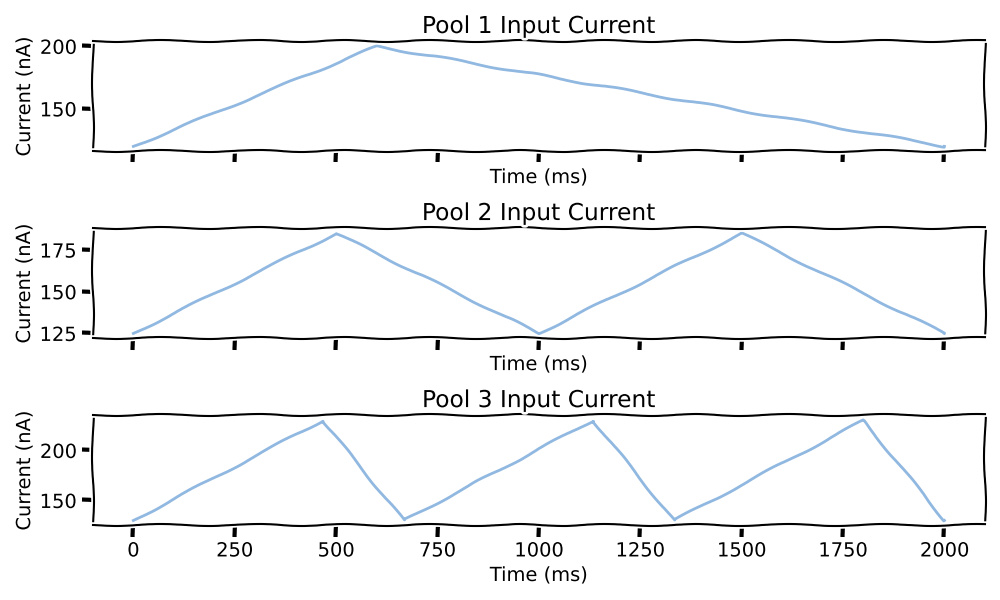

Sawtooth Currents Visualization

Sawtooth currents demonstrate asymmetric ramps with different widths controlling the rise/fall characteristics.

print("Plotting sawtooth currents...")
with plt.xkcd():
    _, axs = plt.subplots(figsize=(10, 6), nrows=n_pools, sharex=True)
    plot_input_current__matrix(sawtooth_currents, timestep__ms, axs, color="#90b8e0")
plt.tight_layout()
plt.show()

Plotting sawtooth currents...

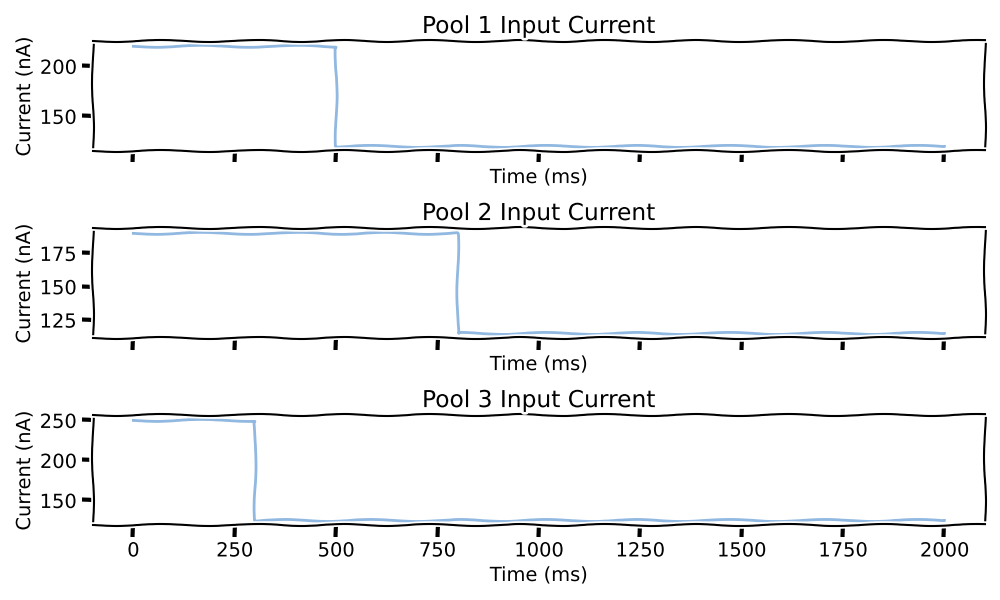

Step Currents Visualization

Step currents show sudden changes in amplitude with different durations for each pool.

print("Plotting step currents...")
with plt.xkcd():
    _, axs = plt.subplots(figsize=(10, 6), nrows=n_pools, sharex=True)
    plot_input_current__matrix(step_currents, timestep__ms, axs, color="#90b8e0")
plt.tight_layout()
plt.show()

Plotting step currents...

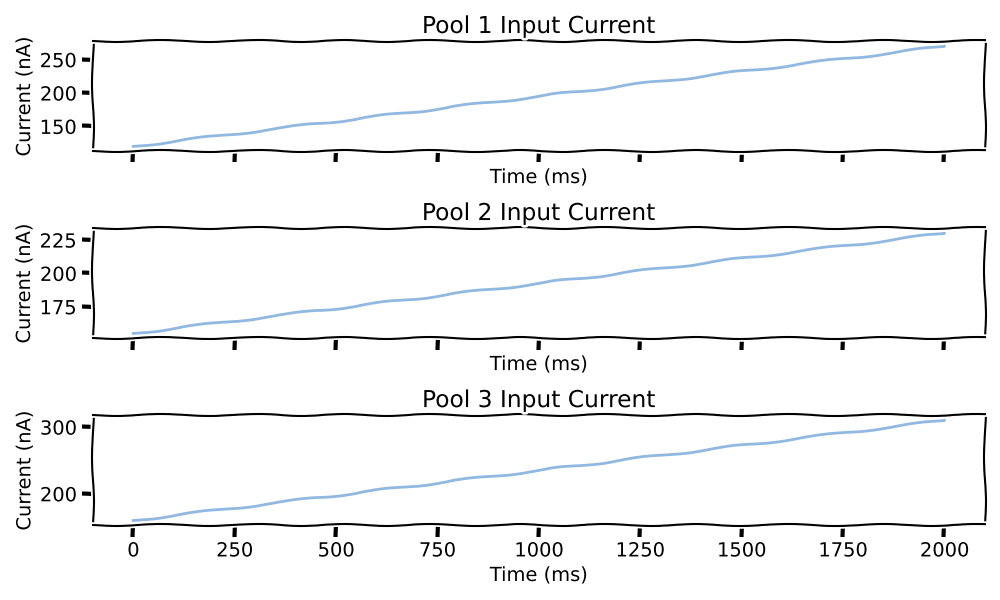

Ramp Currents Visualization

Ramp currents demonstrate linear changes from start to end values with different slopes for each pool.

print("Plotting ramp currents...")
with plt.xkcd():
    _, axs = plt.subplots(figsize=(10, 6), nrows=n_pools, sharex=True)
    plot_input_current__matrix(ramp_currents, timestep__ms, axs, color="#90b8e0")
plt.tight_layout()
plt.show()

Plotting ramp currents...

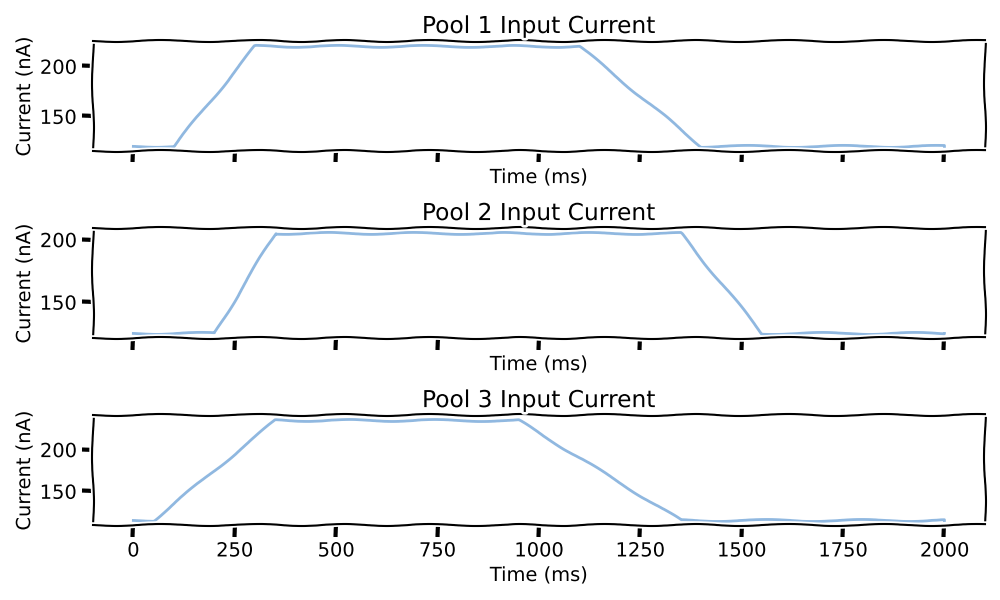

Trapezoid Currents Visualization

Trapezoid currents show complex multi-phase patterns with distinct rise, plateau, and fall periods.

print("Plotting trapezoid currents...")
with plt.xkcd():
    _, axs = plt.subplots(figsize=(10, 6), nrows=n_pools, sharex=True)
    plot_input_current__matrix(trapezoid_currents, timestep__ms, axs, color="#90b8e0")
plt.tight_layout()
plt.show()

Plotting trapezoid currents...
