Surface Motor Unit Action Potentials

After having created the muscle model, we can simulate the surface EMG by creating a surface EMG model.

First step is to create MUAPs from the muscle model.

Note

The MUAPs are the action potentials of the motor units at the surface of the skin.

from pathlib import Path

import joblib
import matplotlib.pyplot as plt
import numpy as np

from myogen import simulator
from myogen.utils.plotting import plot_muap_grid

Define Parameters

The surface EMG is created using the SurfaceEMG object.

The SurfaceEMG object takes the following parameters:

• muscle_model: Muscle model

• sampling_frequency: Sampling frequency

• electrode_grid_dimensions: Electrode grid dimensions

• inter_electrode_distance: Inter-electrode distance

• fat_thickness: Fat thickness

• skin_thickness: Skin thickness

# Define simulation parameters
sampling_frequency = 2048.0  # Hz - standard for surface EMG
electrode_grid_size = (5, 5)
inter_electrode_distance = 4.0  # mm - standard spacing

# Define volume conductor parameters
fat_thickness = 1.0  # mm
skin_thickness = 1.0  # mm

Load Muscle Model

Load muscle model from previous example

save_path = Path("./results")
muscle = joblib.load(save_path / "muscle_model.pkl")

Create Surface EMG Model

The SurfaceEMG object is initialized with the muscle model and the simulation parameters.

Note

For simplicity, we only simulate the first motor unit. This can be changed by modifying the MUs_to_simulate parameter.

This is to simulate the surface EMG from two different directions.

surface_emg = simulator.SurfaceEMG(
    muscle_model=muscle,
    sampling_frequency__Hz=sampling_frequency,
    electrode_grid_dimensions__rows_cols=electrode_grid_size,
    inter_electrode_distance__mm=inter_electrode_distance,
    MUs_to_simulate=[0],
    electrode_grid_center_positions=[(0, 0)],
    fat_thickness__mm=fat_thickness,
    skin_thickness__mm=skin_thickness,
)

Simulate MUAPs

To generate the MUAPs, we need to run the simulate_muaps method of the SurfaceEMG object.

# Run simulation with progress output
muaps = surface_emg.simulate_muaps(show_plots=False, verbose=False)

print(f"\nMUAP simulation completed!")
print(f"Generated MUAPs shape: {muaps.shape}")
print(f"  - {muaps.shape[0]} electrode position(s)")
print(f"  - {muaps.shape[1]} motor units")
print(f"  - {muaps.shape[2]}×{muaps.shape[3]} electrode grid")
print(f"  - {muaps.shape[4]} time samples")

# Save results
joblib.dump(surface_emg, save_path / "surface_emg.pkl")

MU 1 Position 1:   0%|          | 0/5 [00:00<?, ?it/s]
MU 1 Position 1:  20%|██        | 1/5 [00:00<00:00,  4.34it/s]
MU 1 Position 1:  40%|████      | 2/5 [00:00<00:00,  6.09it/s]
MU 1 Position 1:  60%|██████    | 3/5 [00:00<00:00,  6.99it/s]
MU 1 Position 1:  80%|████████  | 4/5 [00:00<00:00,  7.51it/s]
MU 1 Position 1: 100%|██████████| 5/5 [00:00<00:00,  7.83it/s]
MU 1 Position 1: 100%|██████████| 5/5 [00:00<00:00,  7.12it/s]

MUAP simulation completed!
Generated MUAPs shape: (1, 1, 5, 5, 256)
  - 1 electrode position(s)
  - 1 motor units
  - 5×5 electrode grid
  - 256 time samples

['results/surface_emg.pkl']

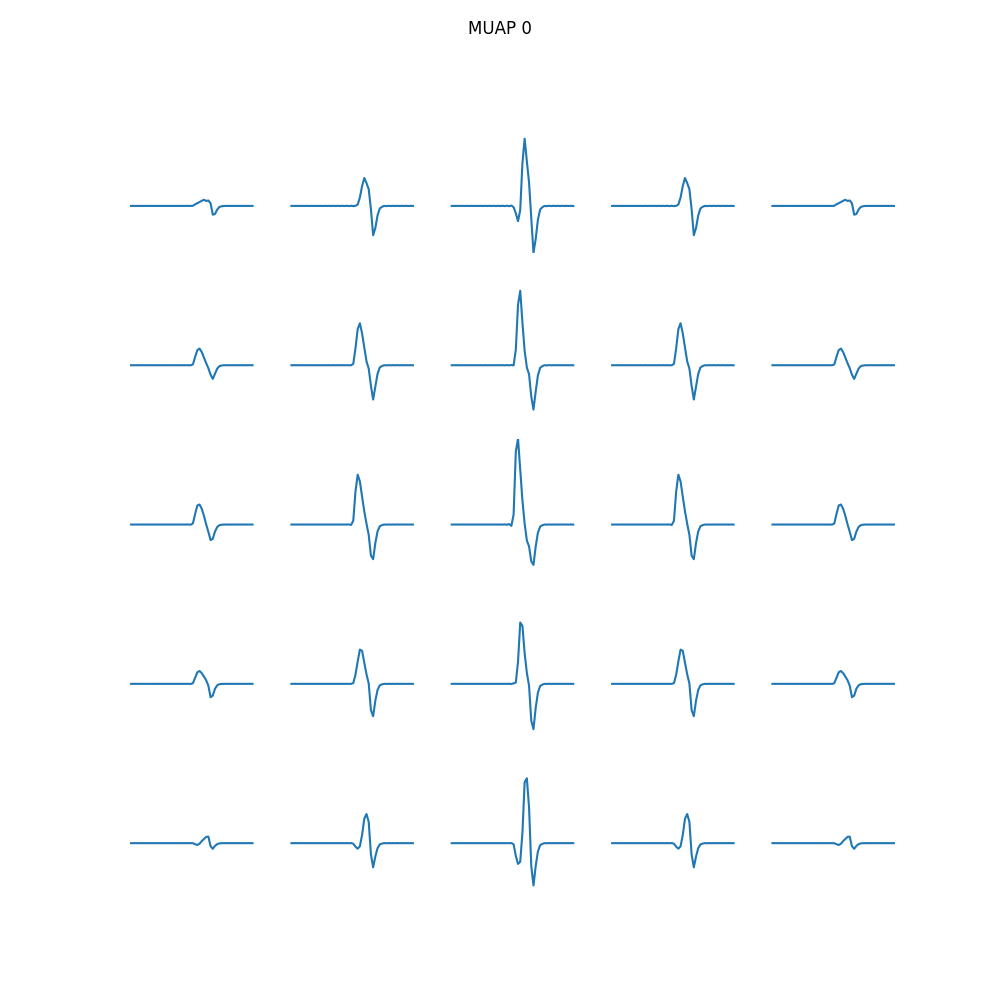

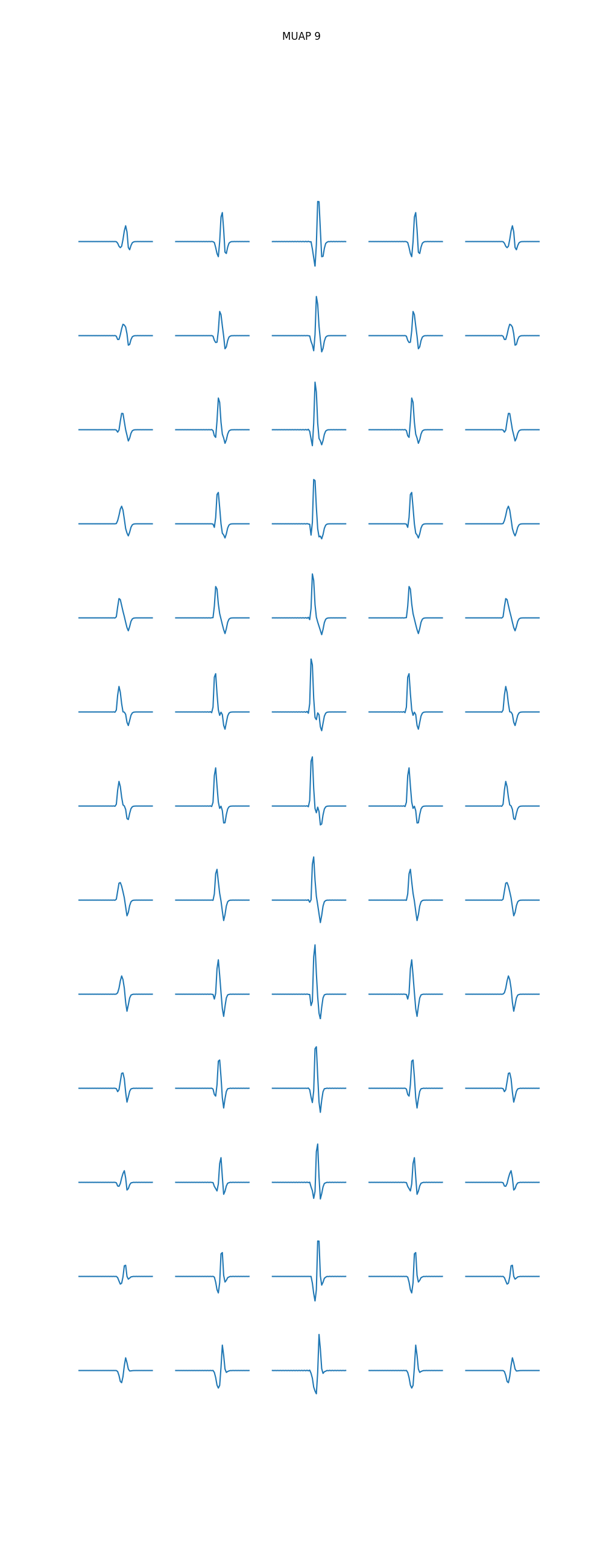

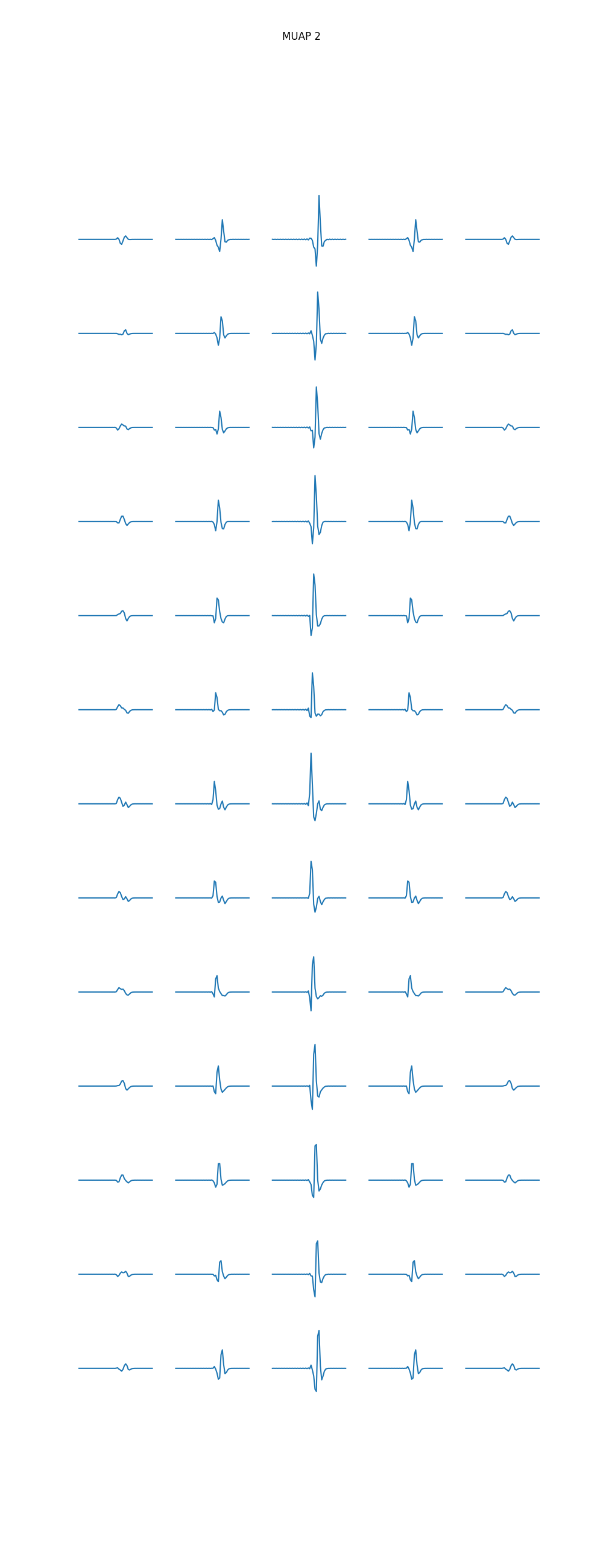

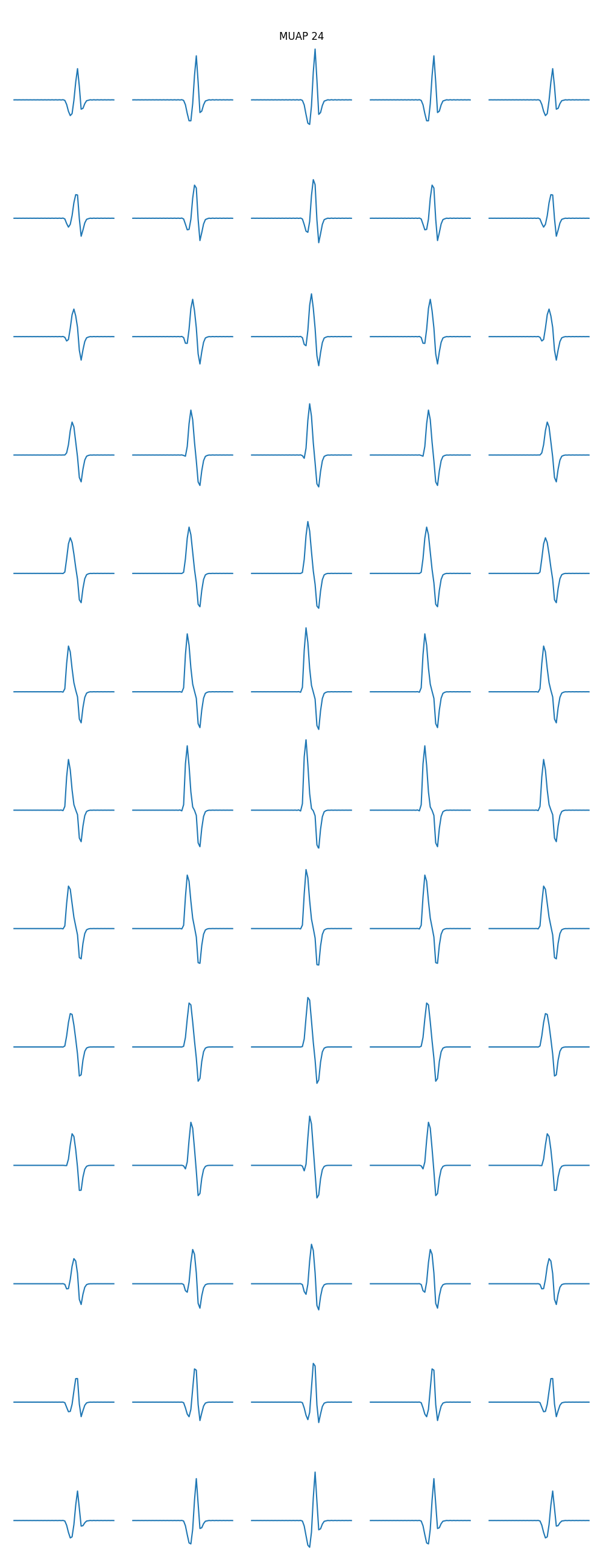

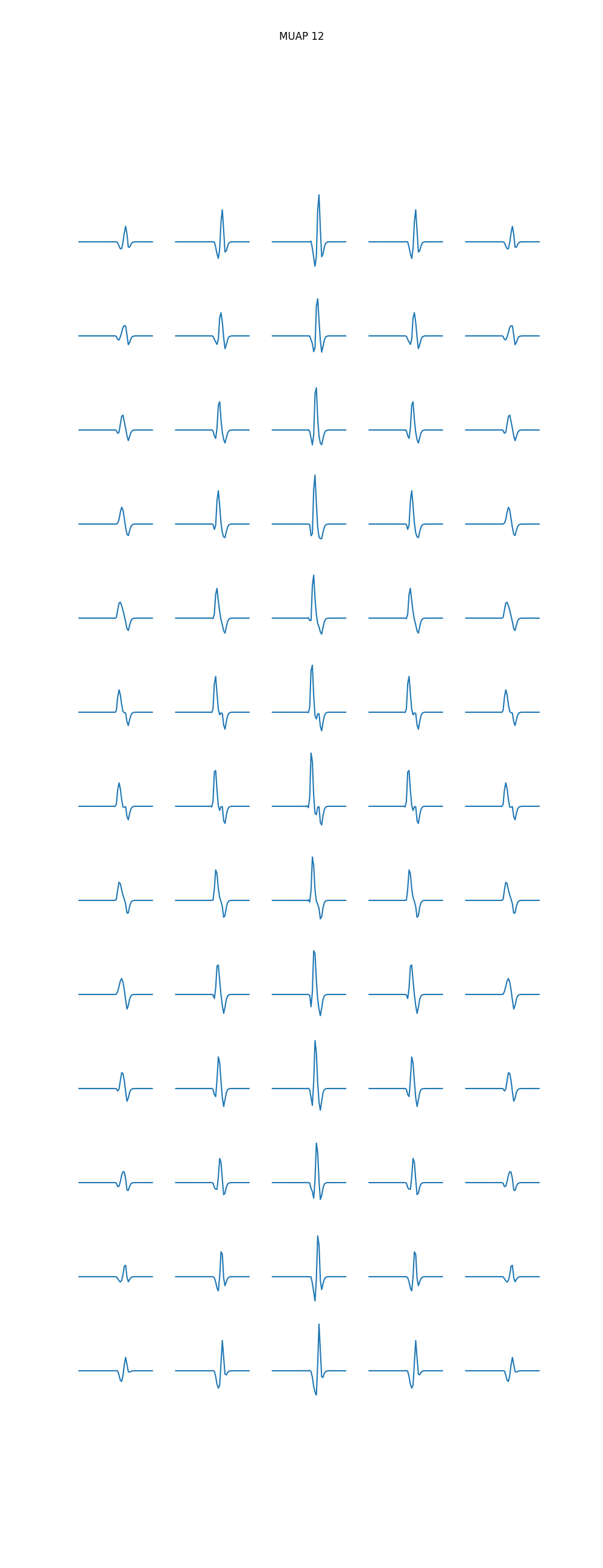

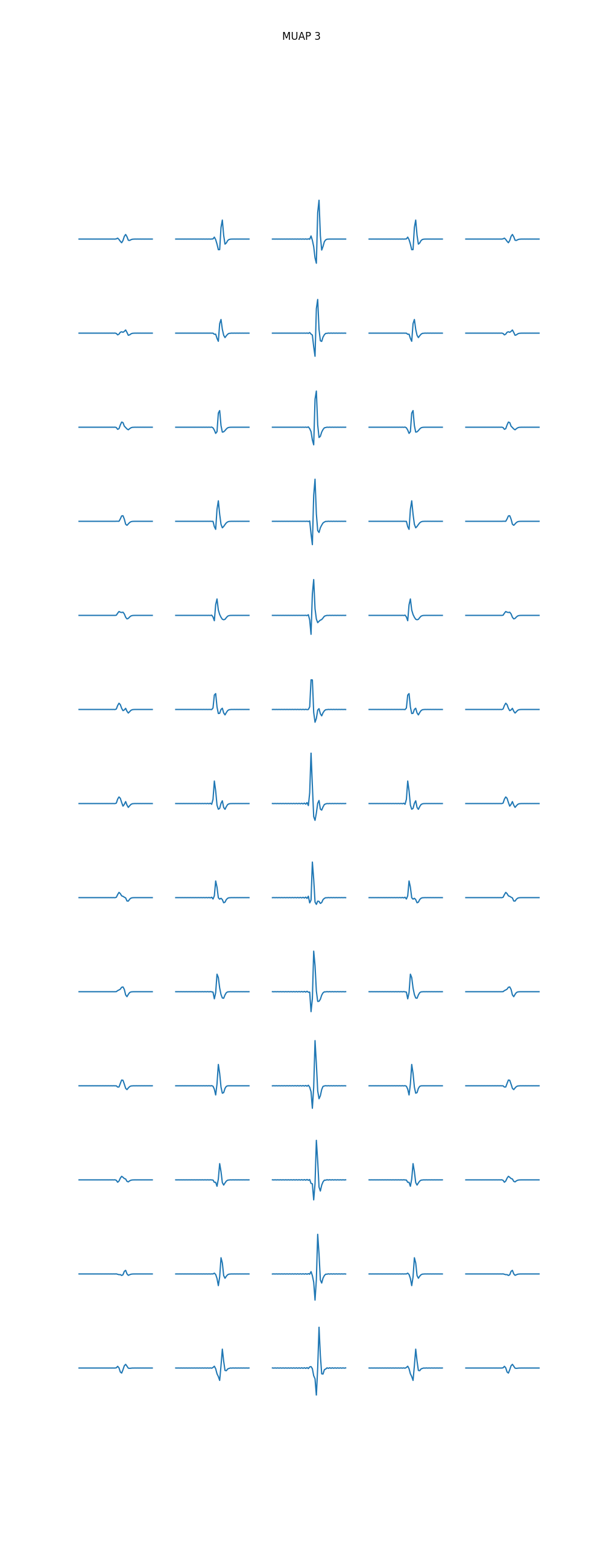

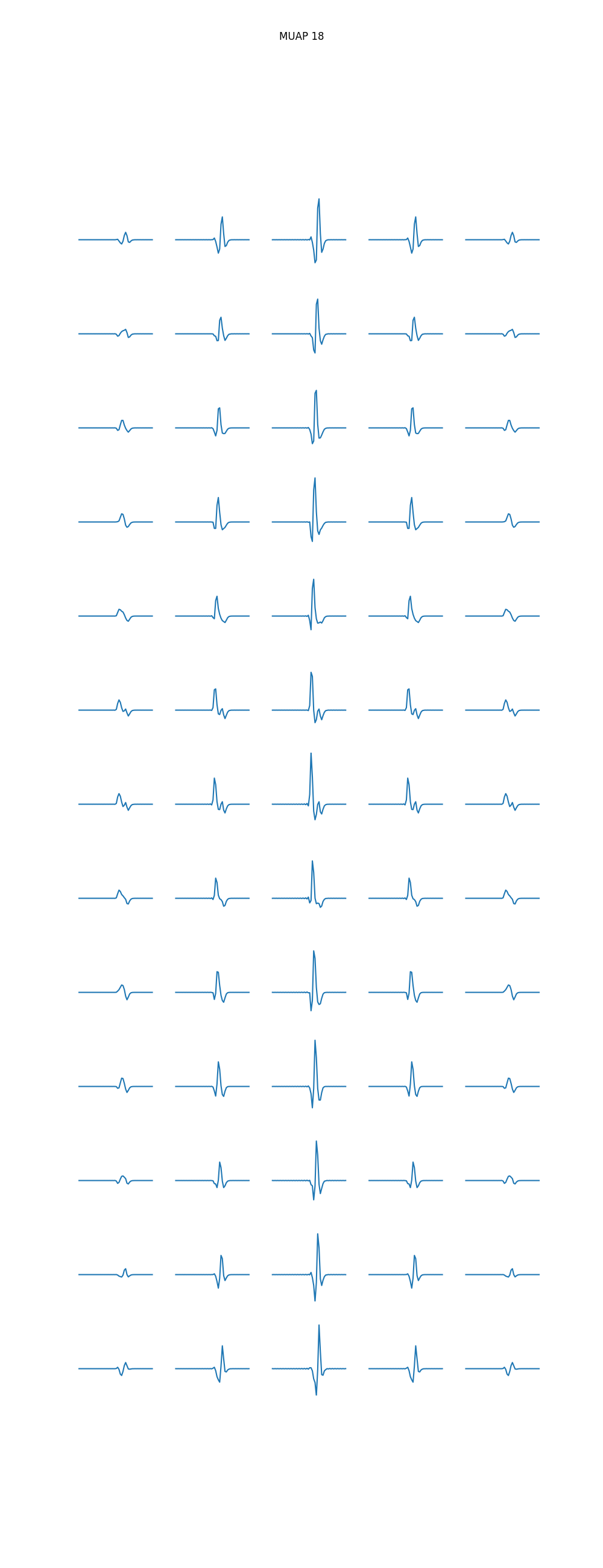

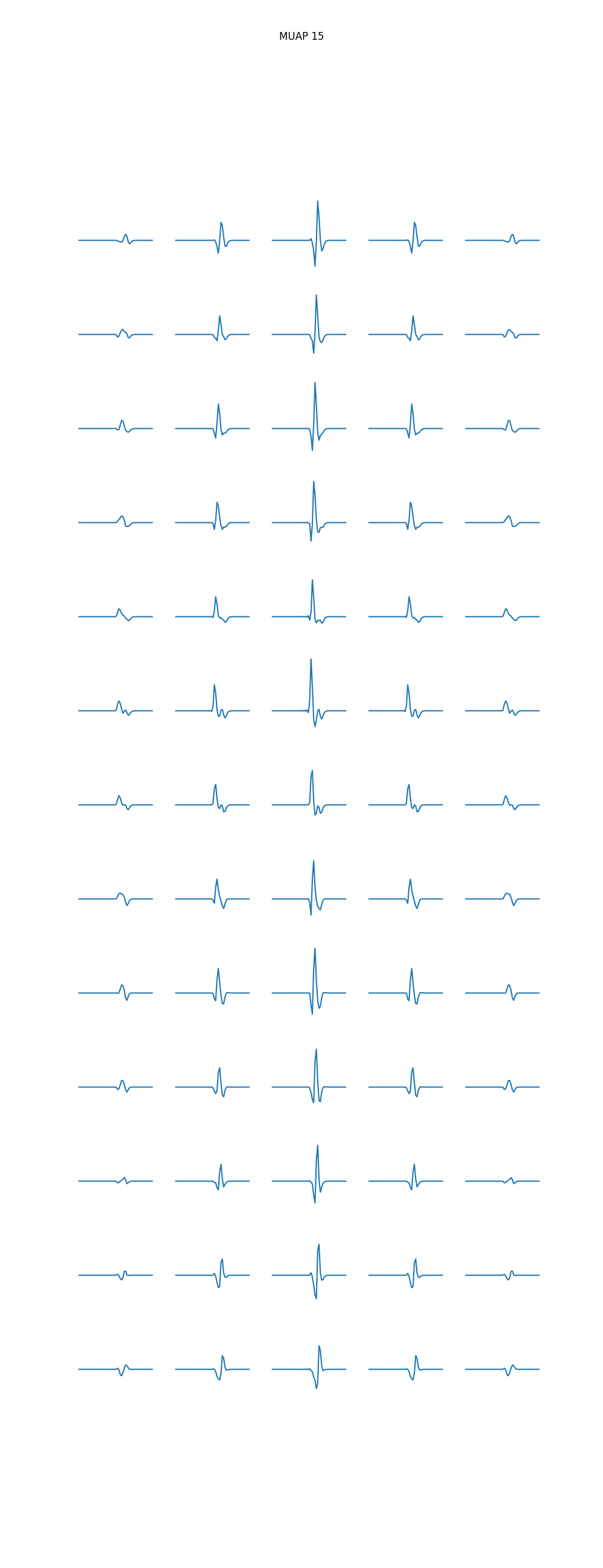

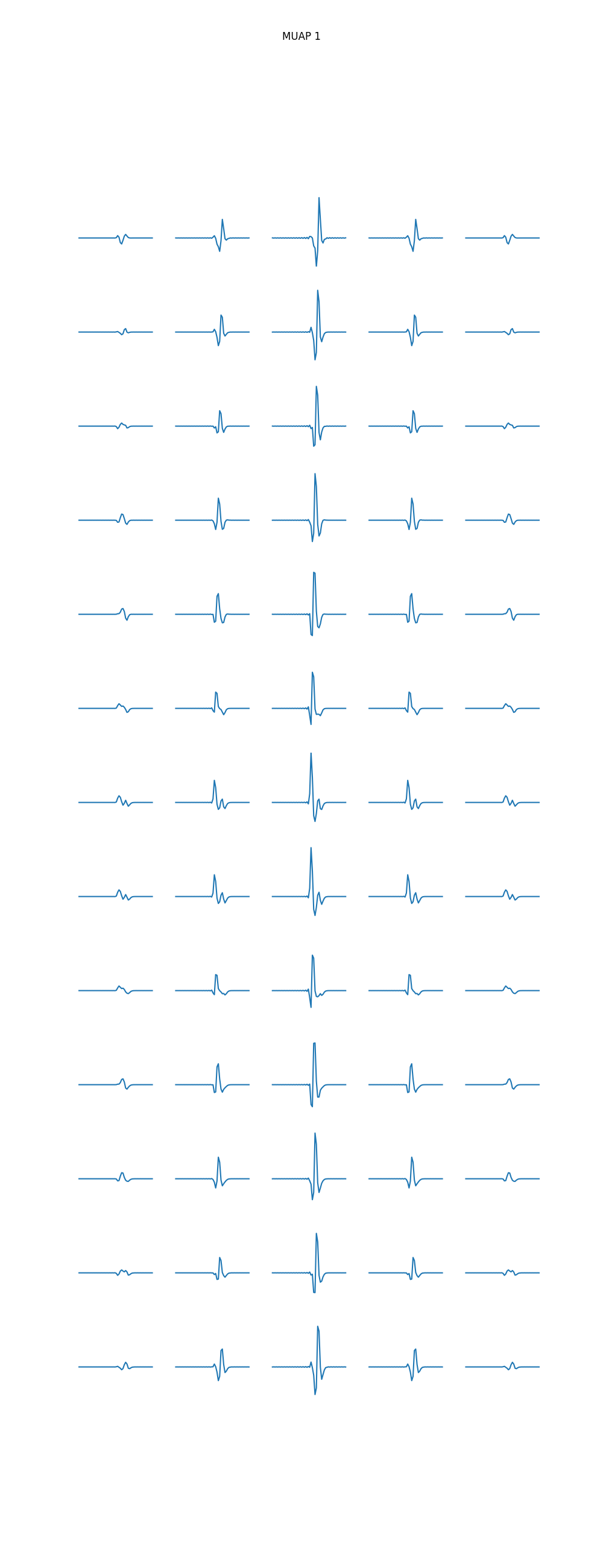

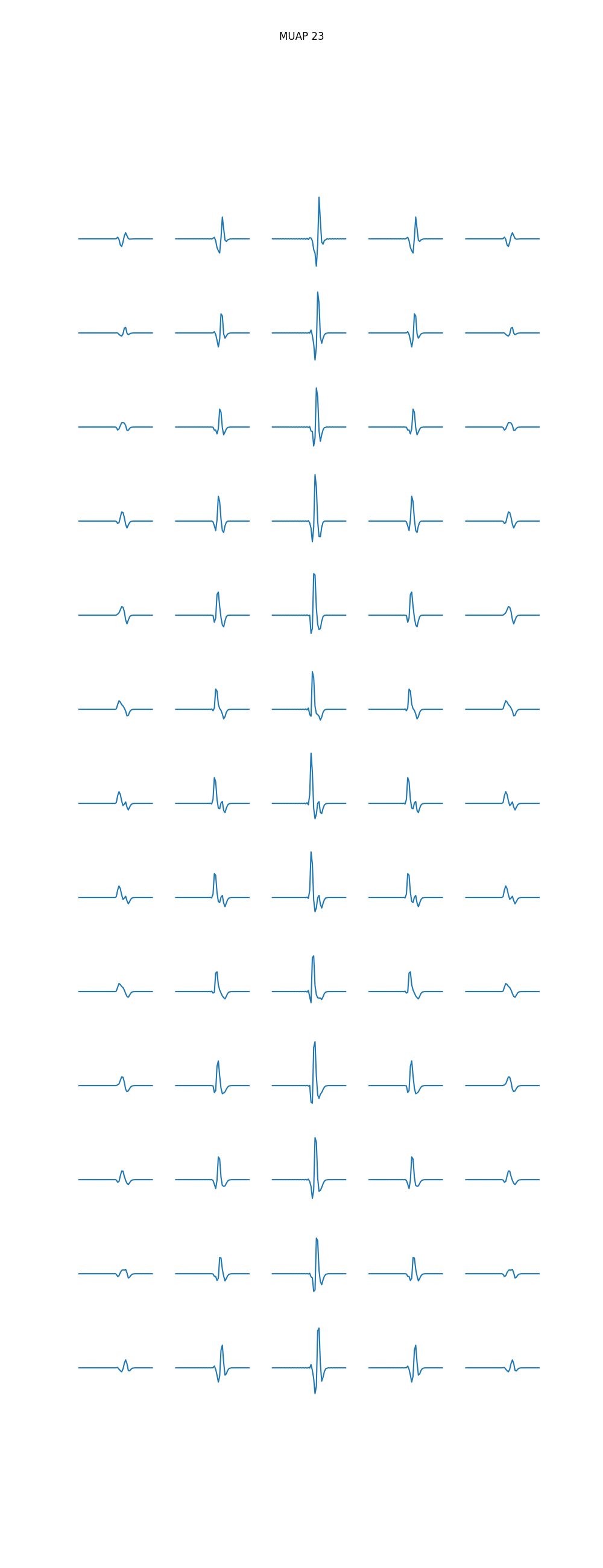

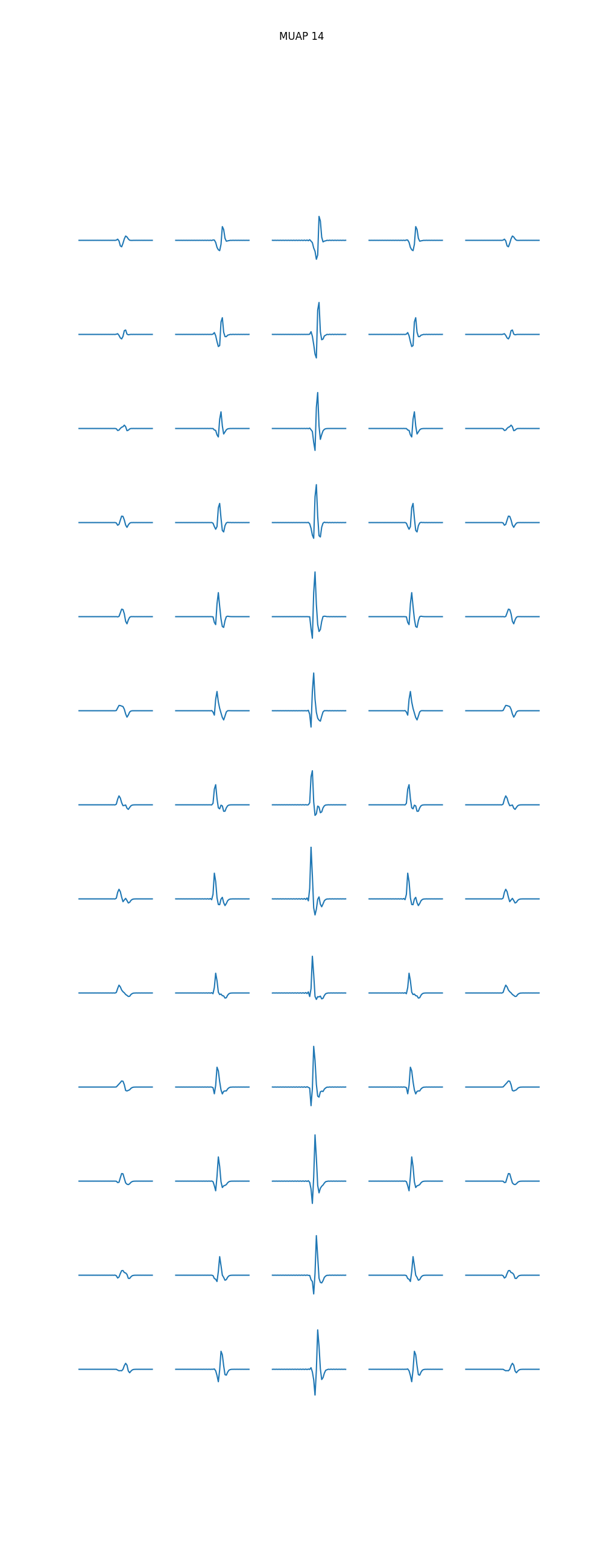

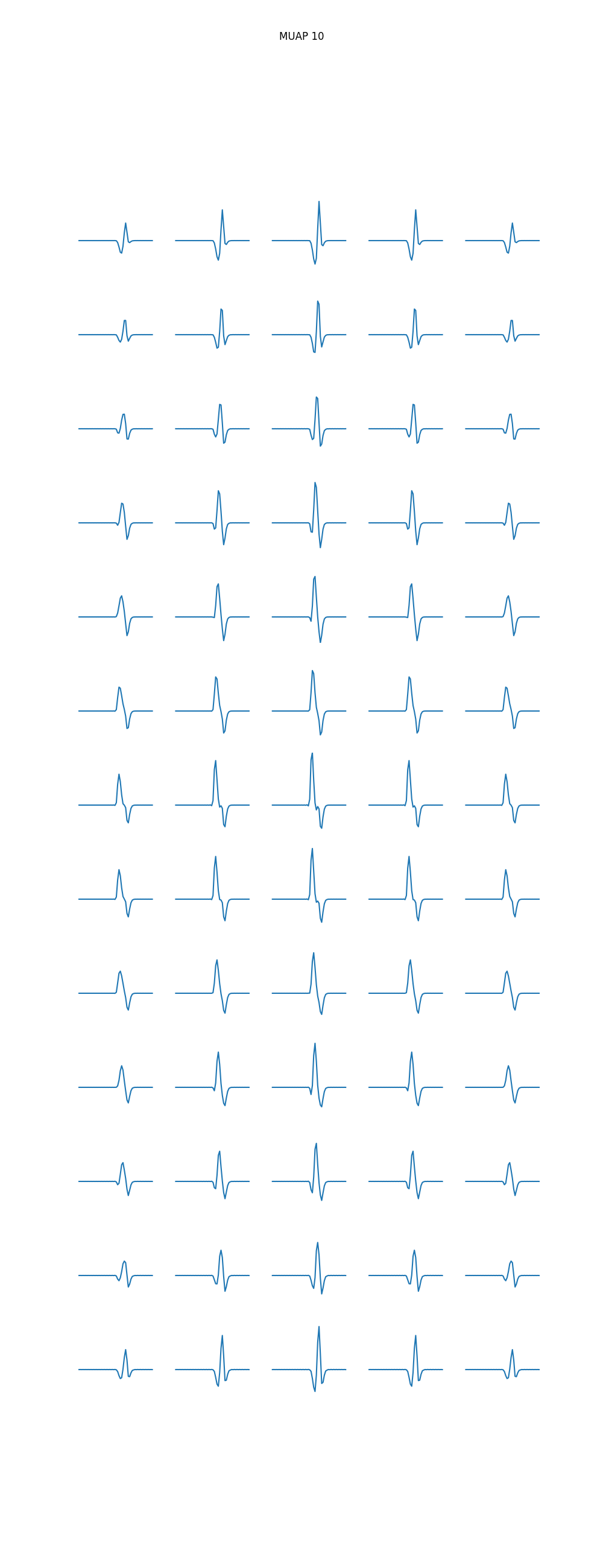

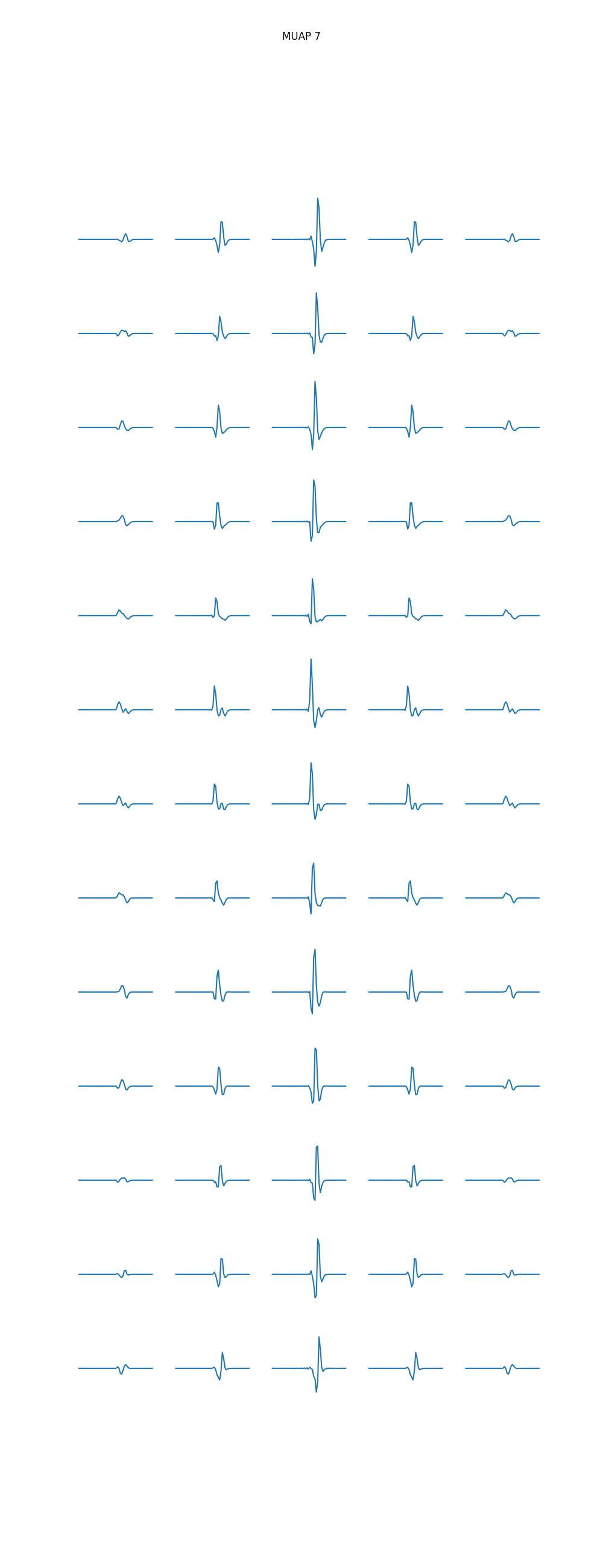

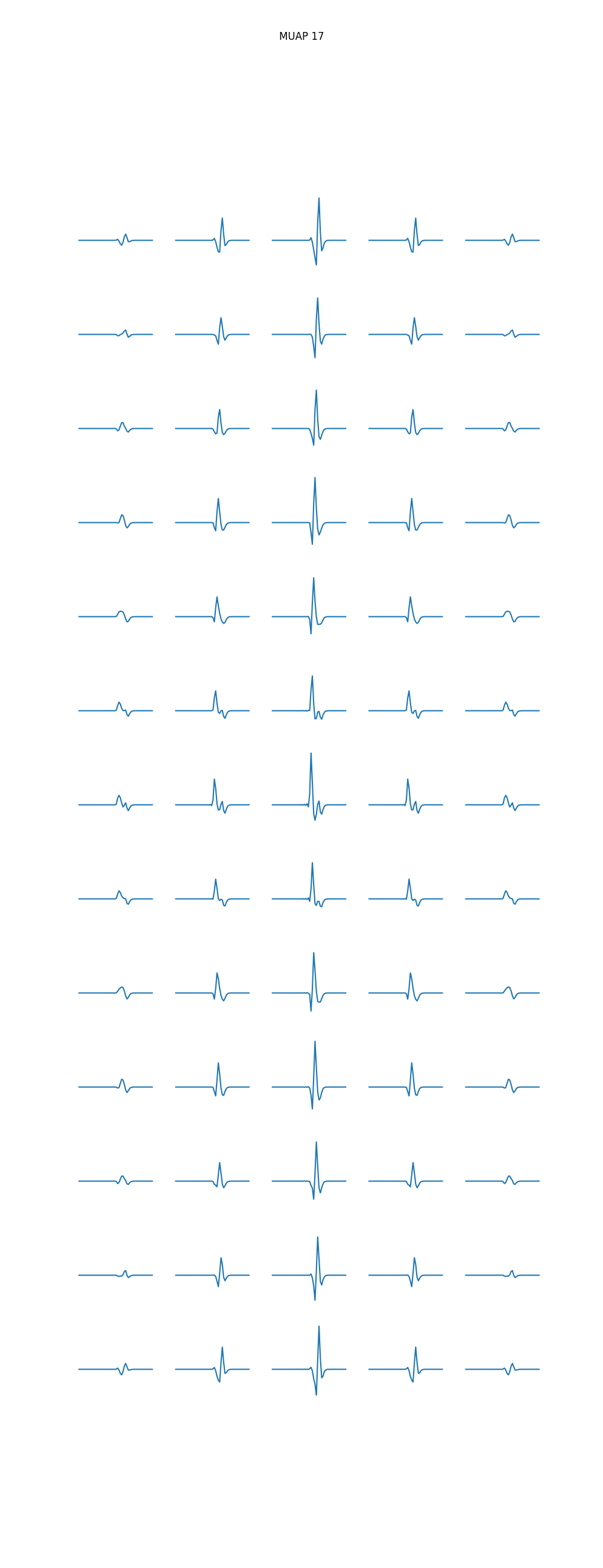

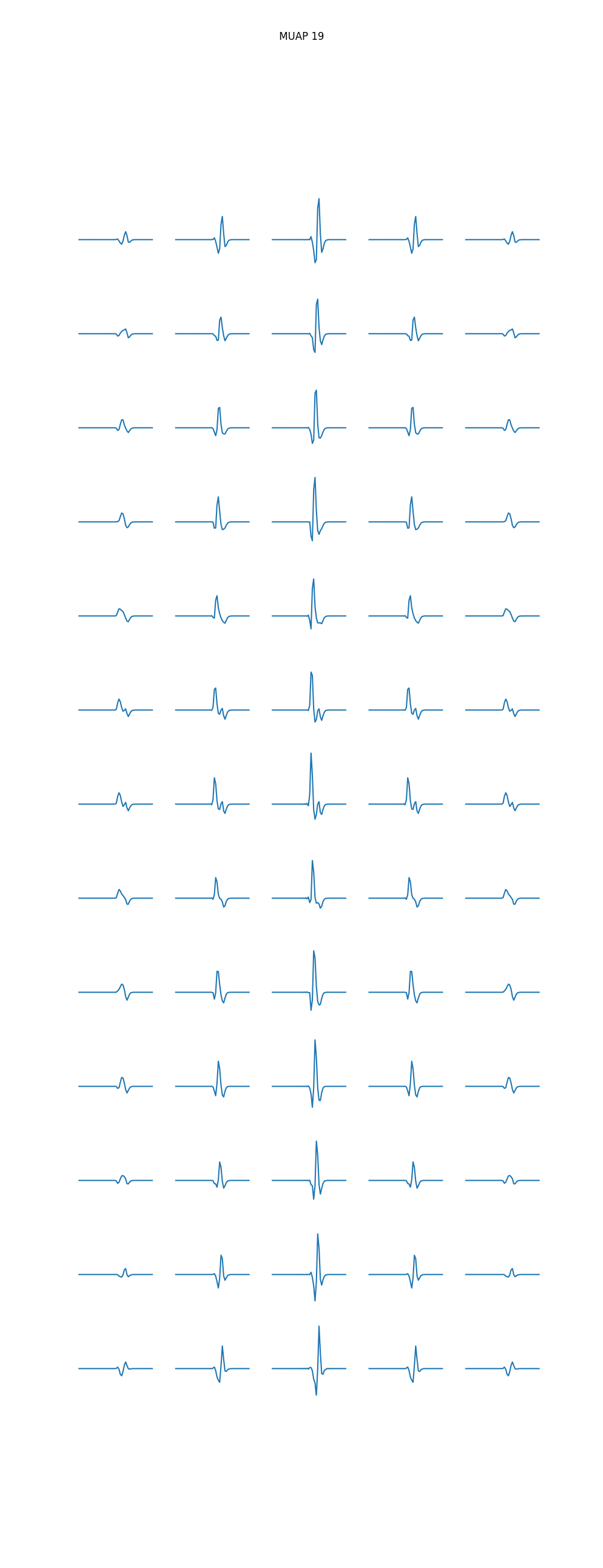

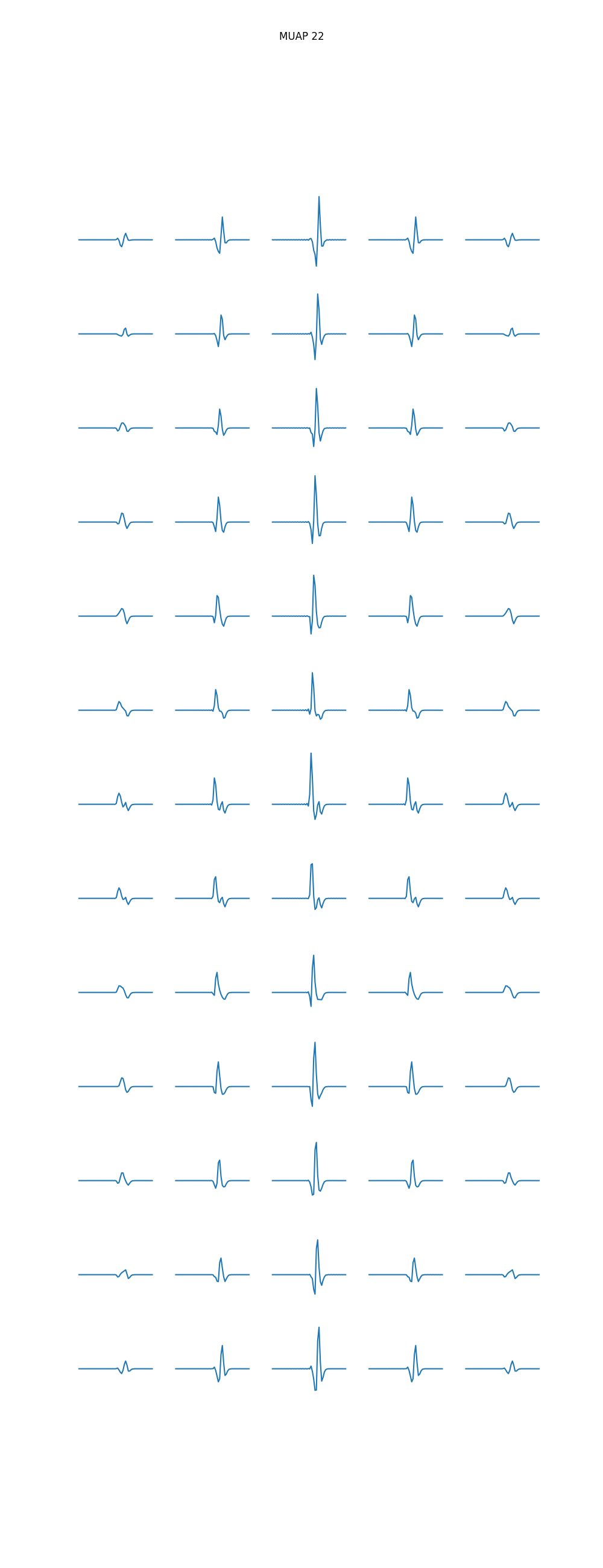

Plot MUAPs

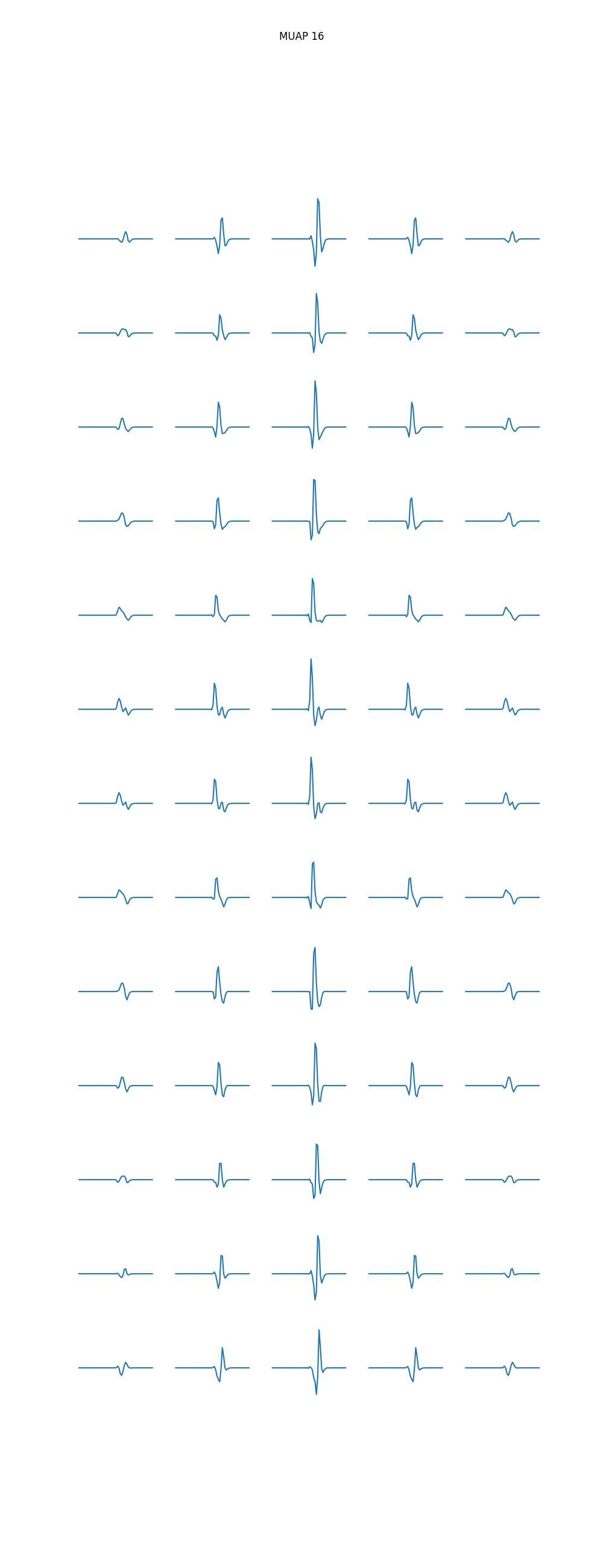

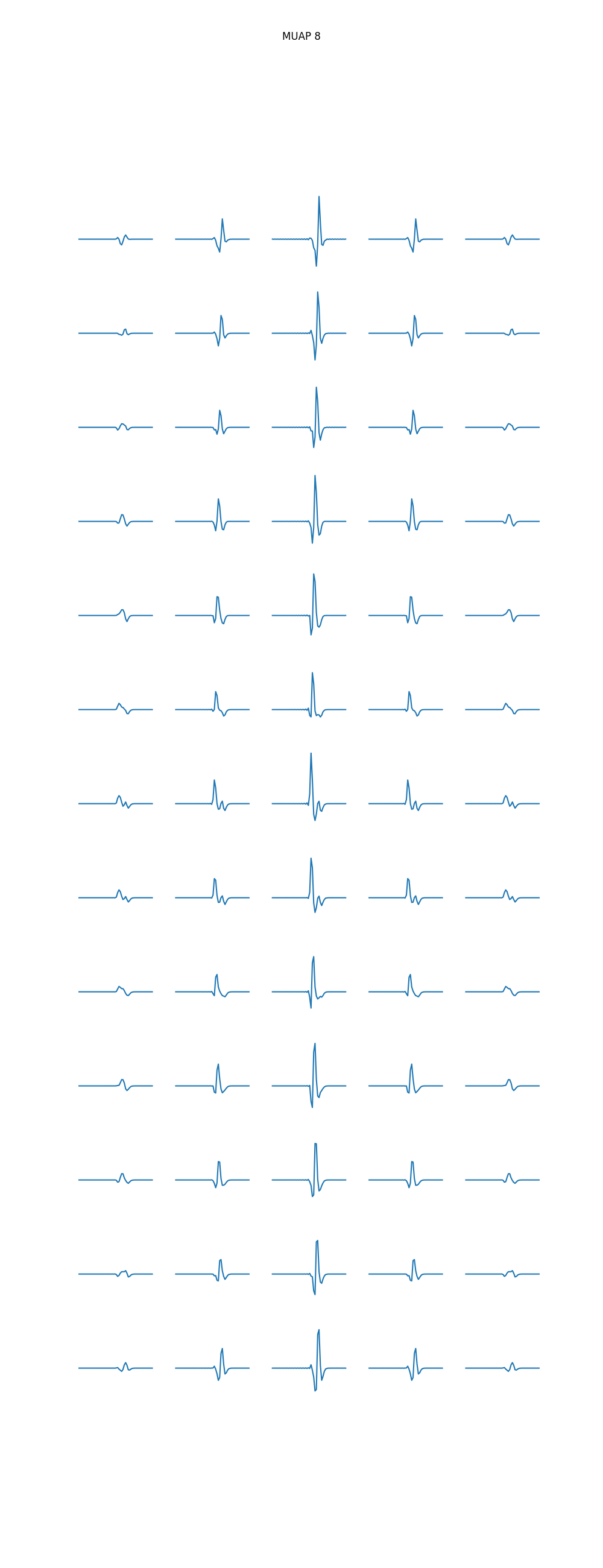

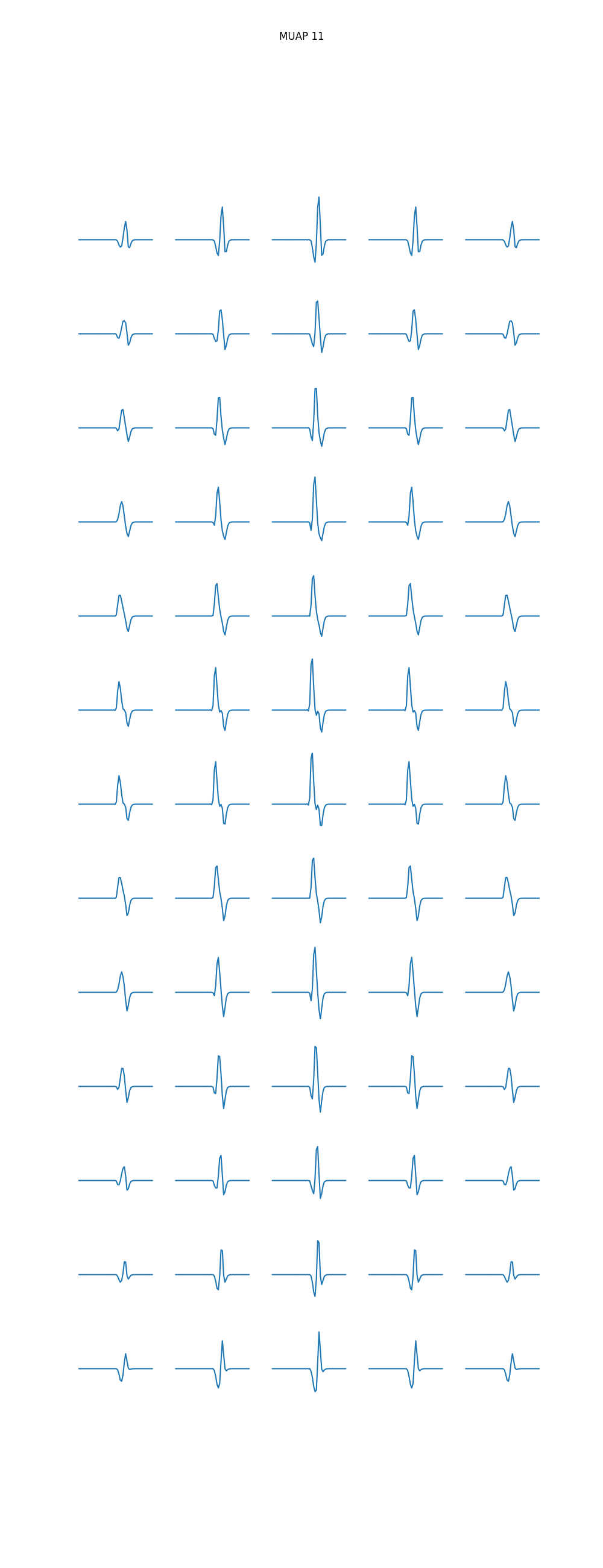

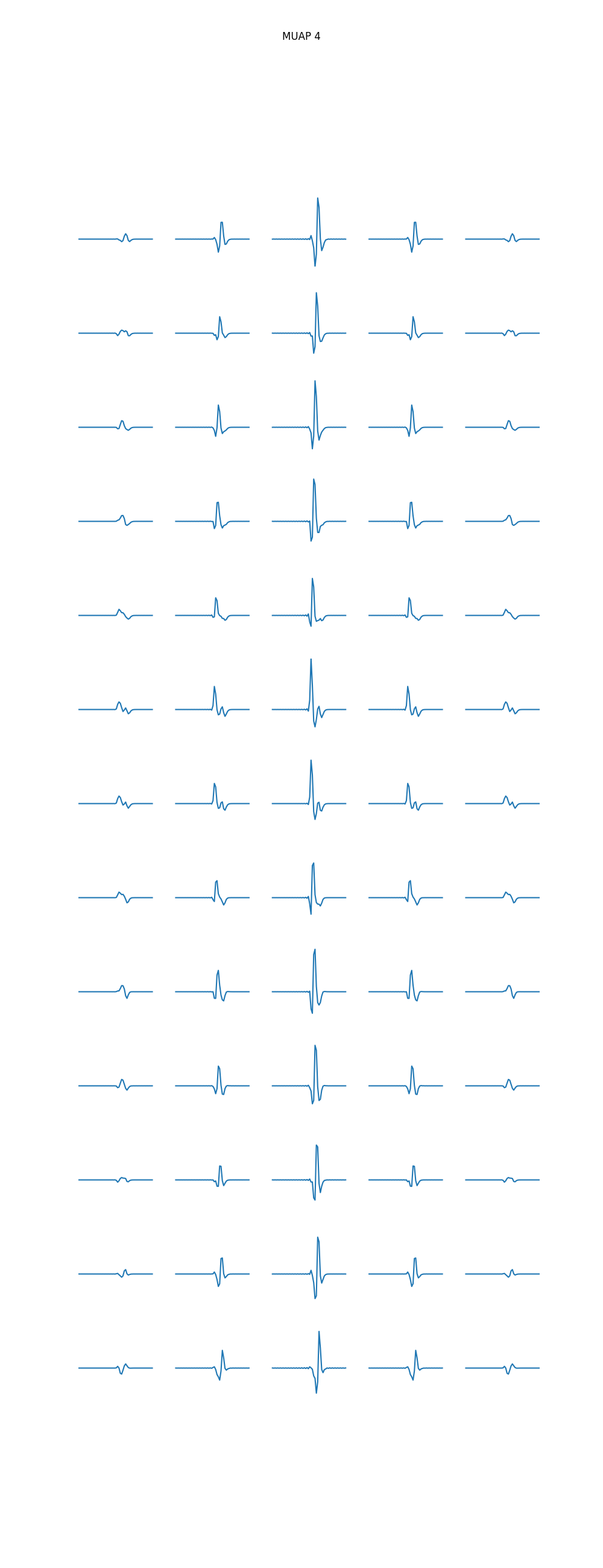

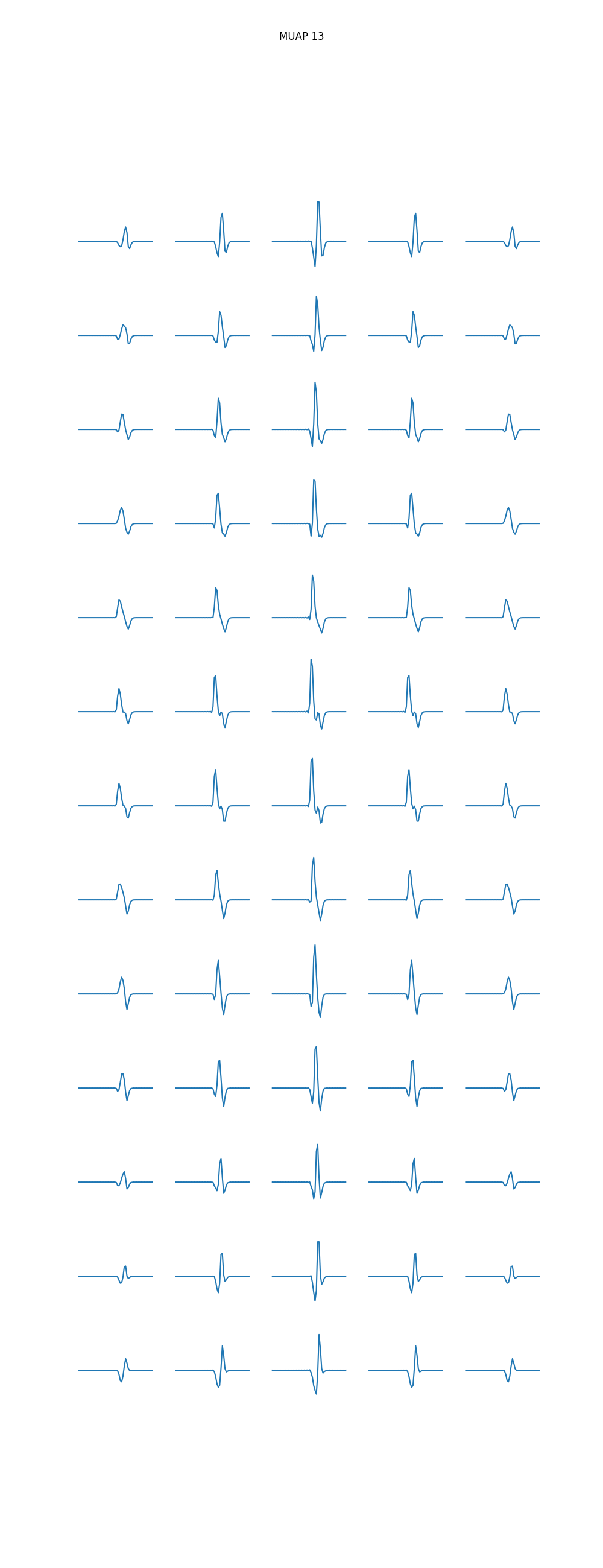

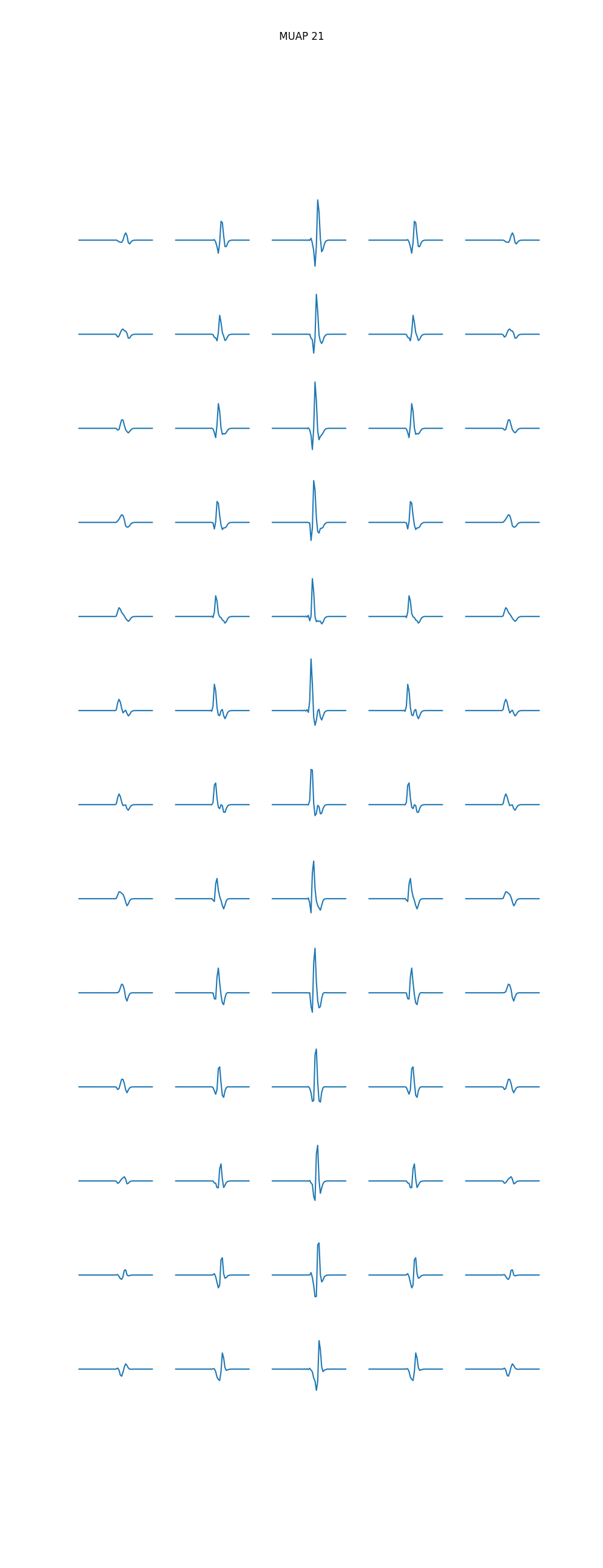

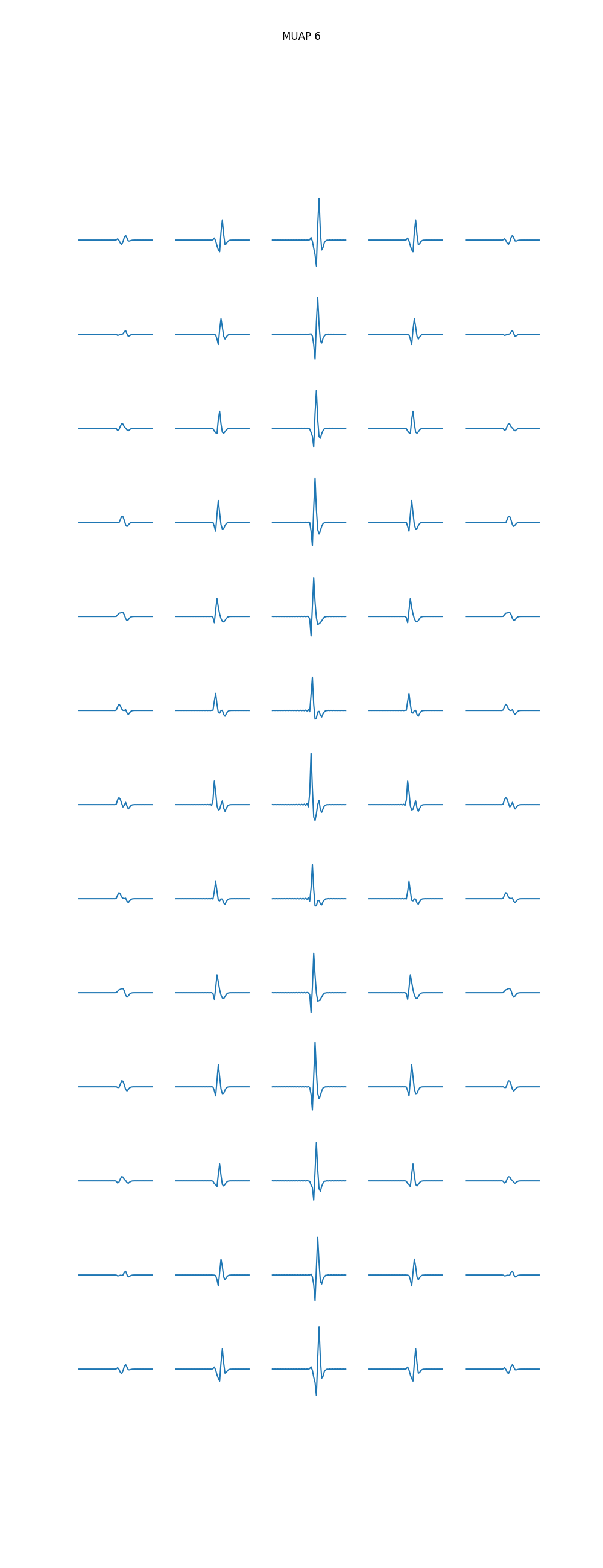

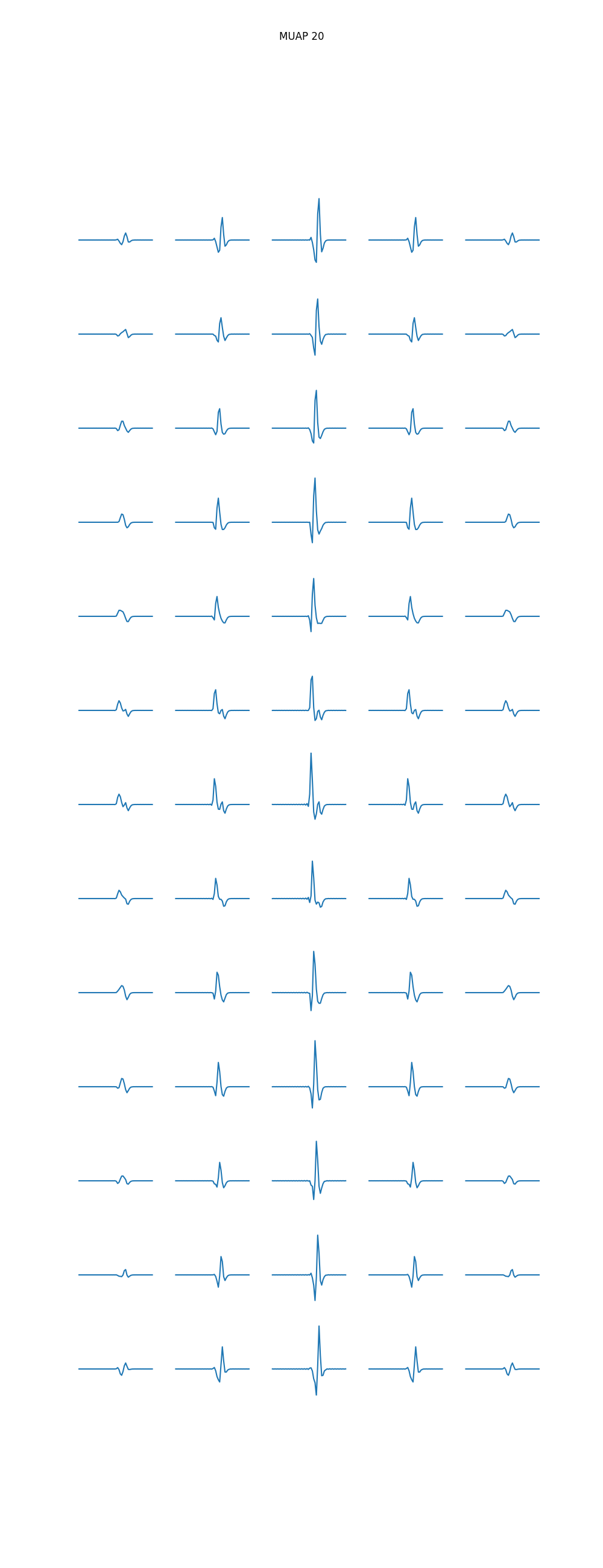

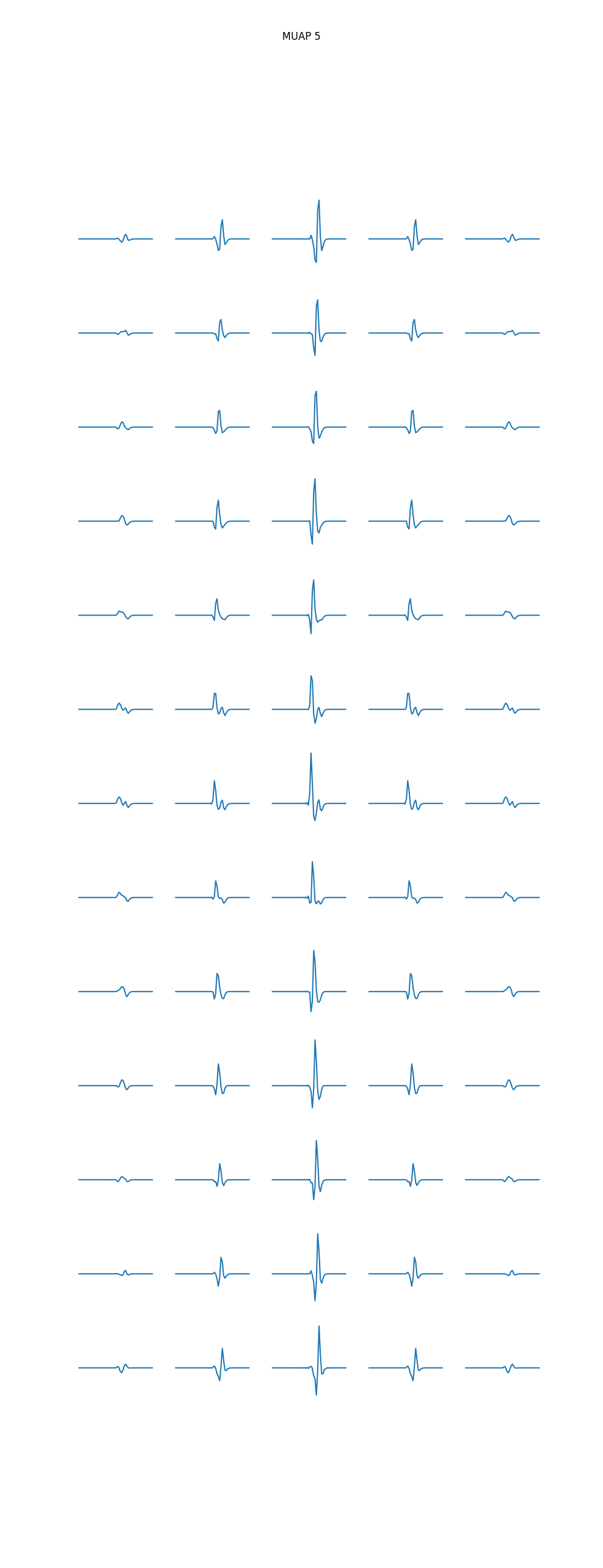

The MUAPs can be plotted using the plot_muap_grid function.

Note

Plotting helper functions are available in the myogen.utils.plotting module. The new API requires creating matplotlib axes and passing them to the plotting function.

# Concatenate MUAPs from all electrode positions and motor units
muaps_concatenated = np.concatenate(muaps)
print(f"Concatenated MUAPs shape: {muaps_concatenated.shape}")

# Create subplot grid for each MUAP (matches electrode grid layout)
n_muaps = muaps_concatenated.shape[0]
electrode_rows = muaps_concatenated.shape[1]
electrode_cols = muaps_concatenated.shape[2]

# Create axes for each MUAP - one subplot grid per MUAP
axes_list = []
for muap_idx in range(n_muaps):
    fig, axes = plt.subplots(
        electrode_rows,
        electrode_cols,
        figsize=(electrode_cols * 2, electrode_rows * 2),
        sharex=True,
        sharey=True,
    )
    fig.suptitle(f"MUAP {muap_idx}")
    axes_list.append(axes)

# Plot MUAPs using the new API
plot_muap_grid(
    muaps_concatenated[:, :, :, 100:-100], axes_list, apply_default_formatting=True
)

# Show all plots
plt.show()

Concatenated MUAPs shape: (1, 5, 5, 256)

Plotting MUAPs:   0%|          | 0/1 [00:00<?, ?it/s]
Plotting MUAPs: 100%|██████████| 1/1 [00:00<00:00,  6.24it/s]
Plotting MUAPs: 100%|██████████| 1/1 [00:00<00:00,  6.23it/s]
